Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of CXA1520-0000-000N0YK230H is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | XLamp® CXA1520 |
Package: | Tray |
Part Status: | Obsolete |
Type: | Chip On Board (COB) |
Color: | White, Warm |
CCT (K): | 3000K 2-Step MacAdam Ellipse |
Wavelength: | - |
Configuration: | Square |
Luminous Flux @ Current/Temperature: | 1245lm (1200lm ~ 1290lm) |
Current - Test: | 500mA |
Temperature - Test: | 85°C |
Voltage - Forward (Vf) (Typ): | 35V |
Lumens/Watt @ Current - Test: | 71 lm/W |
Current - Max: | 900mA |
CRI (Color Rendering Index): | 93 |
Viewing Angle: | 115° |
Features: | - |
Size / Dimension: | 15.85mm L x 15.85mm W |
Height: | 1.70mm |
Light Emitting Surface (LES): | 8.90mm Dia |
Lens Type: | Flat |

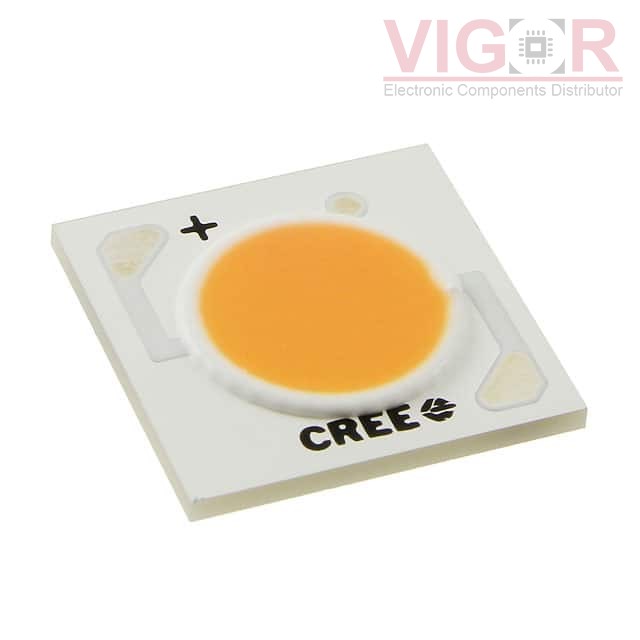

LED ARRAY XLAMP CXA1520 WHITE
