Type | Description |
---|---|
Series: | Xlamp® CXB3590 |
Package: | Tray |
Part Status: | Active |

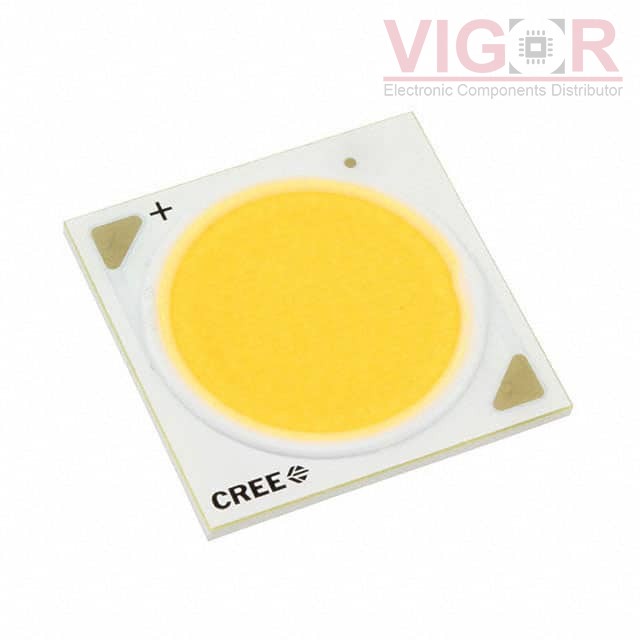

Type: | Chip On Board (COB) |
Color: | White, Cool |
CCT (K): | 5700K 5-Step MacAdam Ellipse |
Wavelength: | - |
Configuration: | Square |
Luminous Flux @ Current/Temperature: | 13500lm (13000lm ~ 14000lm) |
Current - Test: | 1.2A |
Temperature - Test: | 85°C |
Voltage - Forward (Vf) (Typ): | 72V |
Lumens/Watt @ Current - Test: | 156 lm/W |
Current - Max: | 1.8A |
CRI (Color Rendering Index): | - |
Viewing Angle: | 115° |
Features: | - |
Size / Dimension: | 34.85mm L x 34.85mm W |
Height: | 1.70mm |
Light Emitting Surface (LES): | 30.00mm Dia |
Lens Type: | Flat |
