Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of CXB3590-0000-000R0UBB40H is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | Xlamp® CXB3590 |
Package: | Tray |
Part Status: | Active |
Type: | Chip On Board (COB) |
Color: | White, Neutral |
CCT (K): | 4000K 2-Step MacAdam Ellipse |
Wavelength: | - |
Configuration: | Square |
Luminous Flux @ Current/Temperature: | 9750lm (9500lm ~ 10000lm) |
Current - Test: | 1.2A |
Temperature - Test: | 85°C |
Voltage - Forward (Vf) (Typ): | 72V |
Lumens/Watt @ Current - Test: | 113 lm/W |
Current - Max: | 1.8A |
CRI (Color Rendering Index): | 90 |
Viewing Angle: | 115° |
Features: | - |
Size / Dimension: | 34.85mm L x 34.85mm W |
Height: | 1.70mm |
Light Emitting Surface (LES): | 30.00mm Dia |
Lens Type: | Flat |

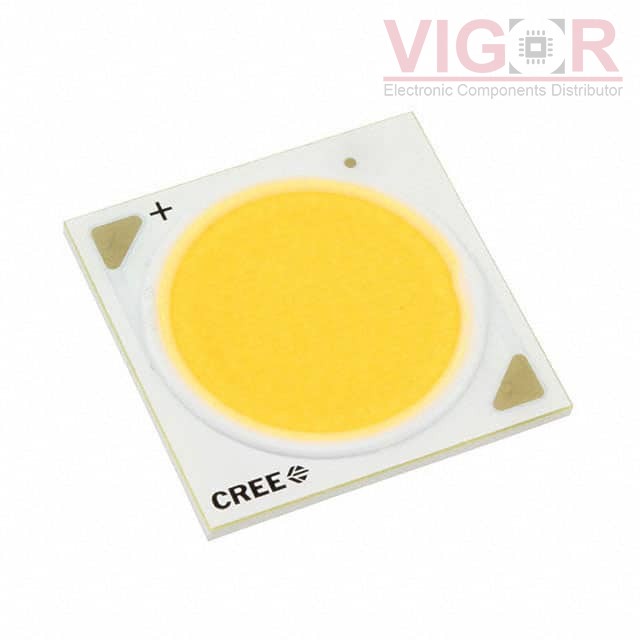

LED COB CXB3590 4000K WHT SMD
