BXRC-50E1000-B-04

BXRC-50E1000-B-04

Image is for reference,
please contact us to get the real picture

Part No :

BXRC-50E1000-B-04

Manufacturer
Bridgelux, Inc.
Description
LED COB VERO10 COOL WHT STARBRD
Catalog
LED Lighting - COBs, Engines, Modules, Strips
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
BXRC-50E1000-B-04 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of BXRC-50E1000-B-04 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BXRC-50E1000-B-04 Specifications
Type Description
Series:Vero® 10 Array
Package:Tray
Part Status:Obsolete
Type:Chip On Board (COB)
Color:White, Cool
CCT (K):5000K 4-Step MacAdam Ellipse
Wavelength:-
Configuration:Starboard
Luminous Flux @ Current/Temperature:1200lm (Typ)
Current - Test:350mA
Temperature - Test:25°C
Voltage - Forward (Vf) (Typ):26.7V
Lumens/Watt @ Current - Test:129 lm/W
Current - Max:700mA
CRI (Color Rendering Index):80
Viewing Angle:120°
Features:-
Size / Dimension:19.00mm L x 20.00mm W
Height:1.90mm
Light Emitting Surface (LES):9.90mm Dia
Lens Type:Flat
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SBR-70-WTH-R75-HB720

SBR-70-WTH-R75-HB720

BIG CHIP LED HB MODULE WHITE

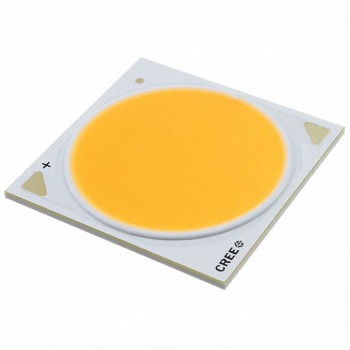

HOT CXA3590-0000-000R0YZ227F
