Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of CLU026-1203C1-273H5G3 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | CLU026 |
Package: | Tray |
Part Status: | Obsolete |
Type: | Chip On Board (COB) |
Color: | White, Warm |
CCT (K): | 2700K 3-Step MacAdam Ellipse |
Wavelength: | - |
Configuration: | Square |
Luminous Flux @ Current/Temperature: | 1013lm (Typ) |
Current - Test: | 270mA |
Temperature - Test: | 85°C |
Voltage - Forward (Vf) (Typ): | 34.6V |
Lumens/Watt @ Current - Test: | 108 lm/W |
Current - Max: | 690mA |
CRI (Color Rendering Index): | 90 |
Viewing Angle: | - |
Features: | - |
Size / Dimension: | 13.50mm L x 13.50mm W |
Height: | 1.40mm |
Light Emitting Surface (LES): | 9.80mm Dia |
Lens Type: | Flat |

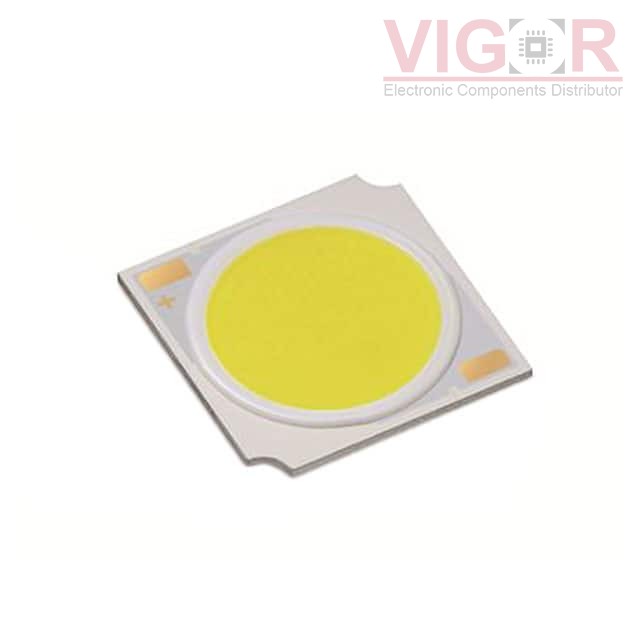

COB LED 2700K 90CRI 1013LM
