56AAD-C28-B15/R80L

56AAD-C28-B15/R80L

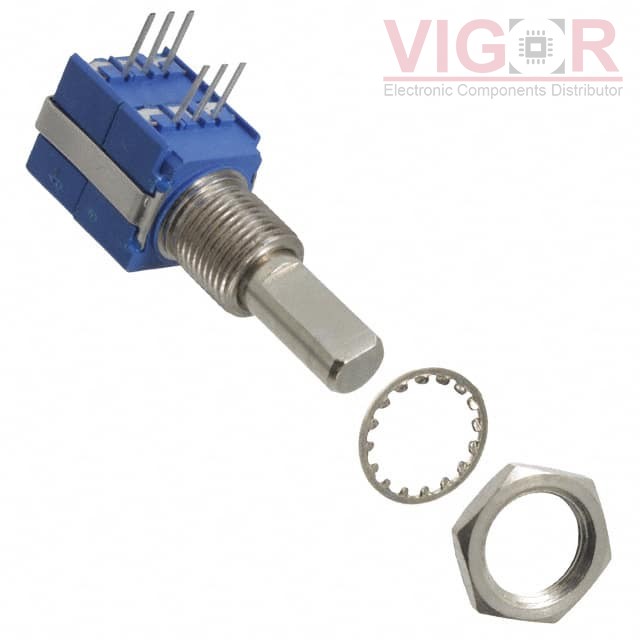

Image is for reference,
please contact us to get the real picture

Part No :

56AAD-C28-B15/R80L

Manufacturer
J.W. Miller / Bourns
Description
POT 10K OHM 1/2W PLASTIC LINEAR
Catalog
Rotary Potentiometers, Rheostats
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
56AAD-C28-B15/R80L PDF
Availability
0 pieces
Unit Price
$9.68748

Current price of 56AAD-C28-B15/R80L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

56AAD-C28-B15/R80L Specifications
Type Description
Series:56
Package:Tray
Part Status:Active
Resistance (Ohms):10k
Tolerance:±20%
Power (Watts):0.5W, 1/2W
Built in Switch:Rotary, SPDT
Number of Turns:1
Taper:Linear
Number of Gangs:1
Adjustment Type:Side Adjustment
Temperature Coefficient:±1000ppm/°C
Rotation:290°
Resistive Material:Conductive Plastic
Termination Style:PC Pins
Actuator Type:Flatted
Actuator Length:0.875" (22.23mm)
Actuator Diameter:0.250" (6.35mm)
Bushing Thread:3/8-32
Mounting Type:Panel Mount
