Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of RB-0515S/H is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|

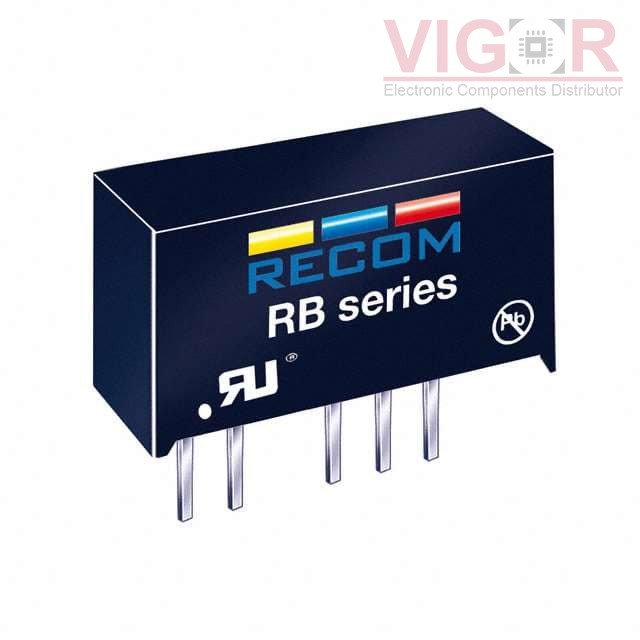

Series: | ECONOLINE RB (1W) |
Package: | Tube |
Part Status: | Active |
Type: | Isolated Module |
Number of Outputs: | 1 |
Voltage - Input (Min): | 4.5V |
Voltage - Input (Max): | 5.5V |
Voltage - Output 1: | 15V |
Voltage - Output 2: | - |
Voltage - Output 3: | - |
Voltage - Output 4: | - |
Current - Output (Max): | 66mA |
Power (Watts): | 1 W |
Voltage - Isolation: | 2 kV |
Applications: | ITE (Commercial), Medical |
Features: | SCP |
Operating Temperature: | -40°C ~ 85°C |
Efficiency: | 84% |
Mounting Type: | Through Hole |
Package / Case: | 7-SIP Module, 5 Leads |
Size / Dimension: | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) |
Supplier Device Package: | - |
Control Features: | - |
Approval Agency: | - |
Standard Number: | - |
