AM1L-0509SH30-NZ

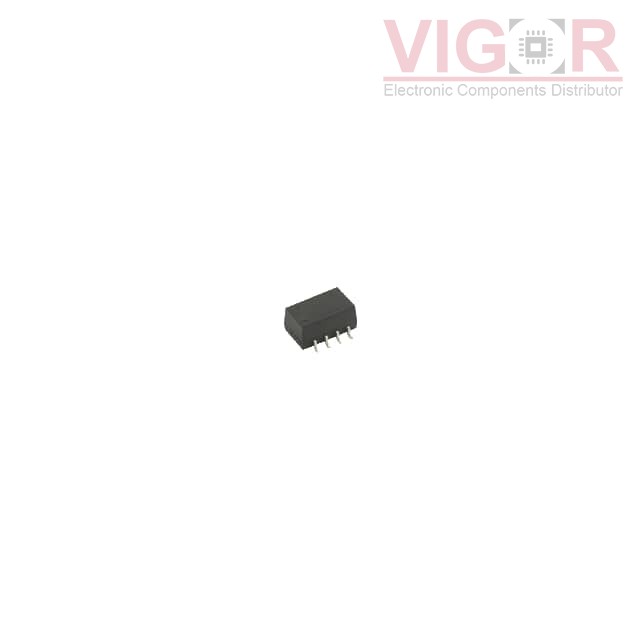

Image is for reference,
please contact us to get the real picture

Part No :: AM1L-0509SH30-NZ

Manufacturer: DComponents

Description: DC DC CONVERTER 9V 999MW

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

DataSheet: AM1L-0509SH30-NZ PDF

Availability: 1035 pieces

Unit Price: ~~$4.76000~~

Current price of AM1L-0509SH30-NZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AM1L-0509SH30-NZ Specifications

Type	Description
Series:	AM1L-NZ (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	111mA
Power (Watts):	999 mW
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	75%
Mounting Type:	Surface Mount
Package / Case:	12-SMD Module, 10 Leads
Size / Dimension:	0.60" L x 0.30" W x 0.26" H (15.2mm x 7.5mm x 6.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE, cULus, cURus
Standard Number:	-
