EC3AE25M

EC3AE25M

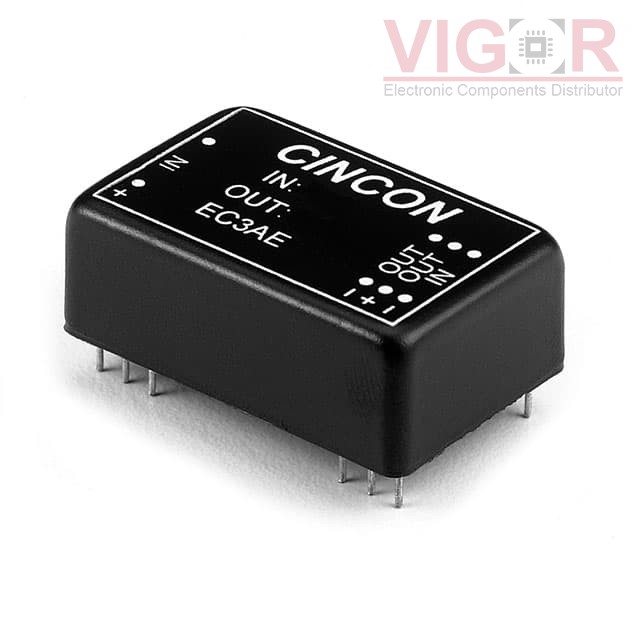

Image is for reference,
please contact us to get the real picture

Part No :

EC3AE25M

Manufacturer
Cincon
Description
DC DC CONVERTER +/-15V 3W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
EC3AE25M PDF
Availability
1502 pieces
Unit Price
$9.51000

Current price of EC3AE25M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EC3AE25M Specifications
Type Description
Series:EC3AE (3W)
Package:Tube
Part Status:Active
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):21.6V
Voltage - Input (Max):26.4V
Voltage - Output 1:15V
Voltage - Output 2:-15V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):100mA, 100mA
Power (Watts):3 W
Voltage - Isolation:500 V
Applications:ITE (Commercial)
Features:SCP
Operating Temperature:-25°C ~ 100°C (With Derating)
Efficiency:61%
Mounting Type:Through Hole
Package / Case:24-DIP Module, 12 Leads
Size / Dimension:1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
