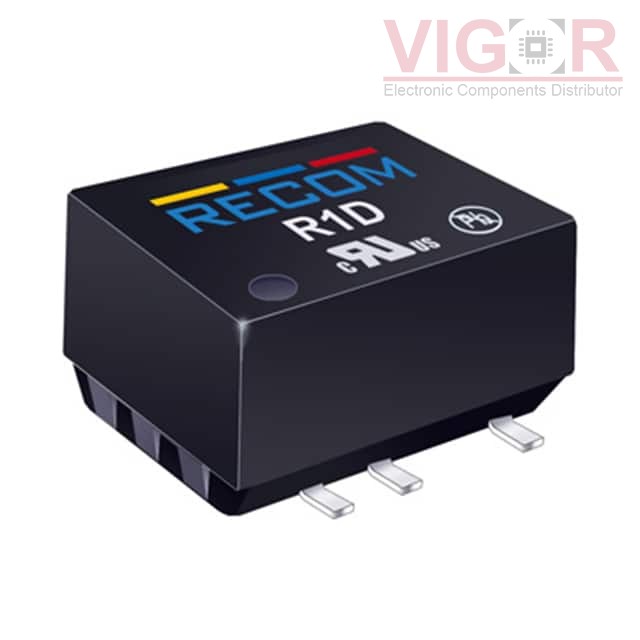

R1D-1505/H

Image is for reference,
please contact us to get the real picture

Part No :: R1D-1505/H

Manufacturer: RECOM Power

Description: DC DC CONVERTER +/-5V 1W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Aug 25 - Aug 29 2025

DataSheet: R1D-1505/H PDF

Availability: 1572 pieces

Unit Price: ~~$7.26606~~

Current price of R1D-1505/H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

R1D-1505/H Specifications

Type	Description
Series:	ECONOLINE R1D (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	13.5V
Voltage - Input (Max):	16.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	100mA, 100mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial), Medical
Features:	SCP
Operating Temperature:	-40°C ~ 100°C
Efficiency:	78%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module, 6 Leads
Size / Dimension:	0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
