AM20EW-11012SH22-NZ-K

AM20EW-11012SH22-NZ-K

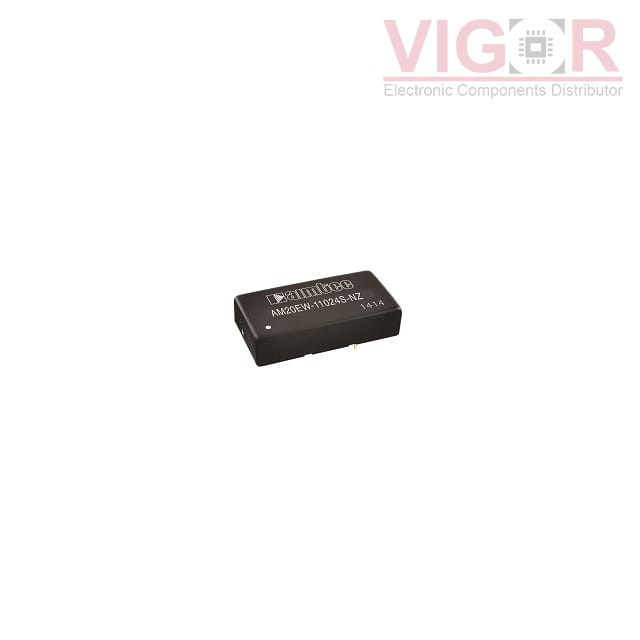

Image is for reference,
please contact us to get the real picture

Part No :

AM20EW-11012SH22-NZ-K

Manufacturer
DComponents
Description
DC DC CONVERTER 12V 20W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Aug 17 - Aug 21 2025
DataSheet
AM20EW-11012SH22-NZ-K PDF
Availability
535 pieces
Unit Price
$36.61000

Current price of AM20EW-11012SH22-NZ-K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AM20EW-11012SH22-NZ-K Specifications
Type Description
Series:AM20EW-NZ (20W)
Package:Tube
Part Status:Active
Type:Isolated Module
Number of Outputs:1
Voltage - Input (Min):40V
Voltage - Input (Max):160V
Voltage - Output 1:12V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):1.667A
Power (Watts):20 W
Voltage - Isolation:2.25 kV
Applications:ITE (Commercial)
Features:Adjustable Output, Heat Sink, Remote On/Off
Operating Temperature:-40°C ~ 85°C (With Derating)
Efficiency:85%
Mounting Type:Through Hole
Package / Case:6-DIP Module
Size / Dimension:2.00" L x 1.00" W x 0.65" H (50.8mm x 25.4mm x 16.5mm)
Supplier Device Package:-
Control Features:-
Approval Agency:CE, cURus
Standard Number:-
