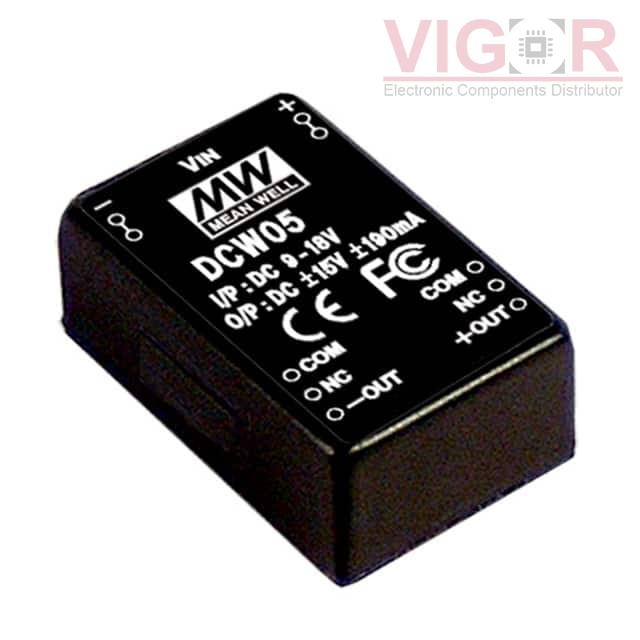

DCW05B-15

DCW05B-15

Image is for reference,
please contact us to get the real picture

Part No :

DCW05B-15

Manufacturer
MEAN WELL
Description
DC DC CONVERTER +/-15V 5.7W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
DCW05B-15 PDF
Availability
891 pieces
Unit Price
$10.88000

Current price of DCW05B-15 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DCW05B-15 Specifications
Type Description
Series:DCW05 (5W)
Package:Tube
Part Status:Obsolete
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):18V
Voltage - Input (Max):36V
Voltage - Output 1:15V
Voltage - Output 2:-15V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):190mA, 190mA
Power (Watts):5.7 W
Voltage - Isolation:1 kV
Applications:ITE (Commercial)
Features:OCP, SCP
Operating Temperature:-40°C ~ 71°C (With Derating)
Efficiency:83%
Mounting Type:Through Hole
Package / Case:24-DIP Module, 8 Leads
Size / Dimension:1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT V150C12T150BL

V150C12T150BL

DC DC CONVERTER 12V 150W

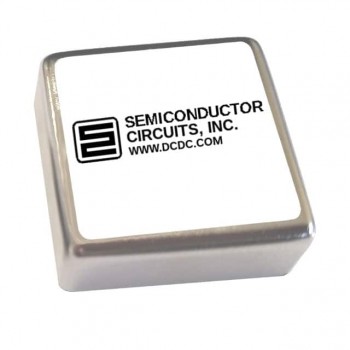

HOT CP30B1775018N

CP30B1775018N

DC DC CONVERTER 3.3V 25W

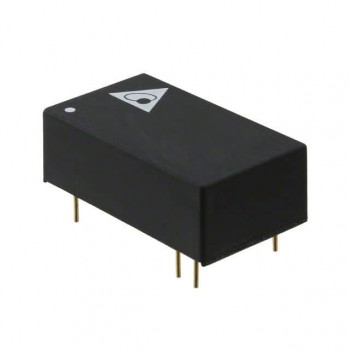

HOT DB02S1215A
