AM1DS-0524D-NZ

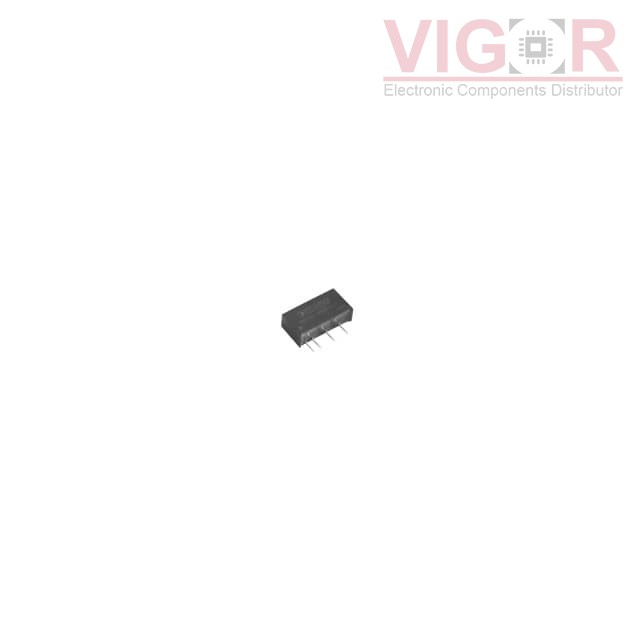

Image is for reference,
please contact us to get the real picture

Part No :: AM1DS-0524D-NZ

Manufacturer: DComponents

Description: DC DC CONVERTER 24V -24V 1W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: AM1DS-0524D-NZ PDF

Availability: 337 pieces

Unit Price: ~~$3.02000~~

Current price of AM1DS-0524D-NZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AM1DS-0524D-NZ Specifications

Type	Description
Series:	AM1DS-NZ (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	24V
Voltage - Output 2:	-24V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	21mA, 21mA
Power (Watts):	1 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	81%
Mounting Type:	Through Hole
Package / Case:	6-SIP Module, 5 Leads
Size / Dimension:	0.77" L x 0.24" W x 0.37" H (19.5mm x 6.0mm x 9.4mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	cULus, cURus
Standard Number:	-
