PCN1-S5-S15-S

PCN1-S5-S15-S

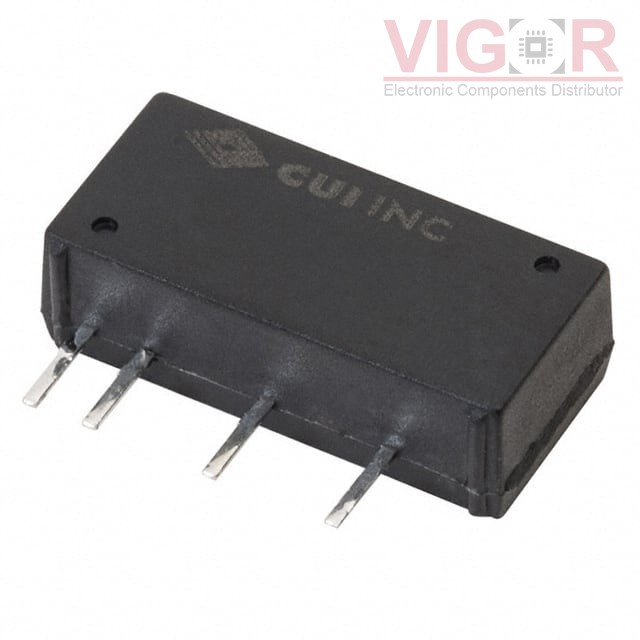

Image is for reference,
please contact us to get the real picture

Part No :

PCN1-S5-S15-S

Manufacturer
CUI Inc.
Description
DC DC CONVERTER 15V 1W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
PCN1-S5-S15-S PDF
Availability
1622 pieces
Unit Price
$4.27000

Current price of PCN1-S5-S15-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PCN1-S5-S15-S Specifications
Type Description
Series:PCN1-S (1W)
Package:Tube
Part Status:Active
Type:Isolated Module
Number of Outputs:1
Voltage - Input (Min):4.5V
Voltage - Input (Max):5.5V
Voltage - Output 1:15V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):67mA
Power (Watts):1 W
Voltage - Isolation:1.5 kV
Applications:ITE (Commercial)
Features:SCP
Operating Temperature:-40°C ~ 100°C
Efficiency:79%
Mounting Type:Through Hole
Package / Case:6-SIP Module, 4 Leads
Size / Dimension:0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm)
Supplier Device Package:-
Control Features:-
Approval Agency:EN
Standard Number:55032 Class A
