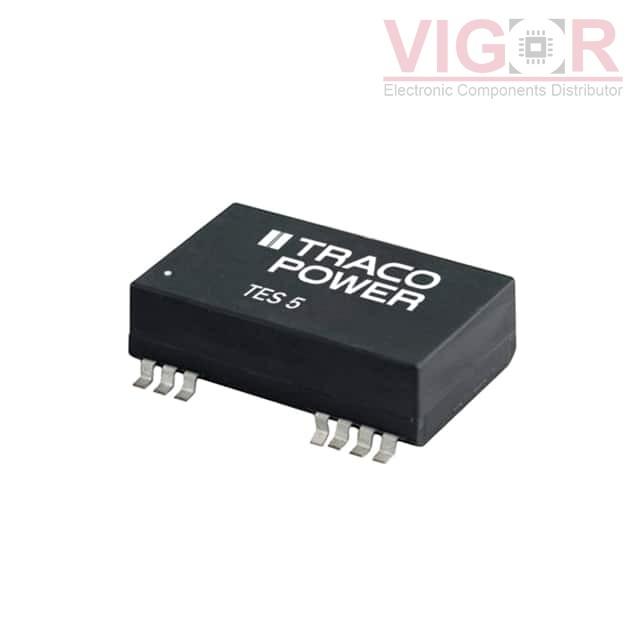

TES 5-2422

Image is for reference,
please contact us to get the real picture

Part No :: TES 5-2422

Manufacturer: TRACO Power

Description: DC DC CONVERTER +/-12V 5W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: TES 5-2422 PDF

Availability: 1743 pieces

Unit Price: ~~$37.20000~~

Current price of TES 5-2422 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TES 5-2422 Specifications

Type	Description
Series:	TES 5 (5W)
Package:	Tube
Part Status:	Not For New Designs
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	12V
Voltage - Output 2:	-12V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	210mA, 210mA
Power (Watts):	5 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, SCP
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	85%
Mounting Type:	Surface Mount
Package / Case:	24-SMD Module, 14 Leads
Size / Dimension:	1.31" L x 0.81" W x 0.40" H (33.4mm x 20.6mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

APXW005A0X3-SRDZ

DC DC CONVERTER 3-18V 45W

HOT

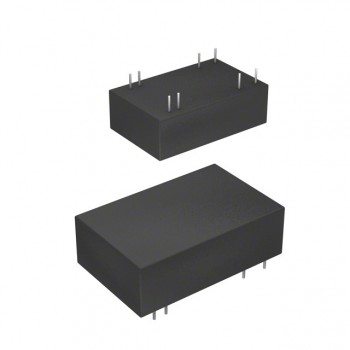

REC3-053.3SRW/H4/A

DC DC CONVERTER 3.3V 3W

HOT

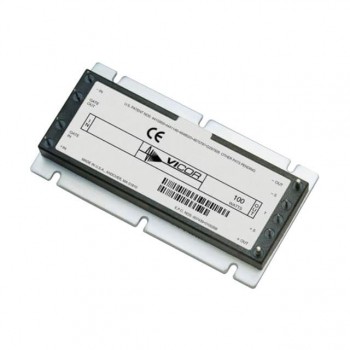

MI-27P-MW
