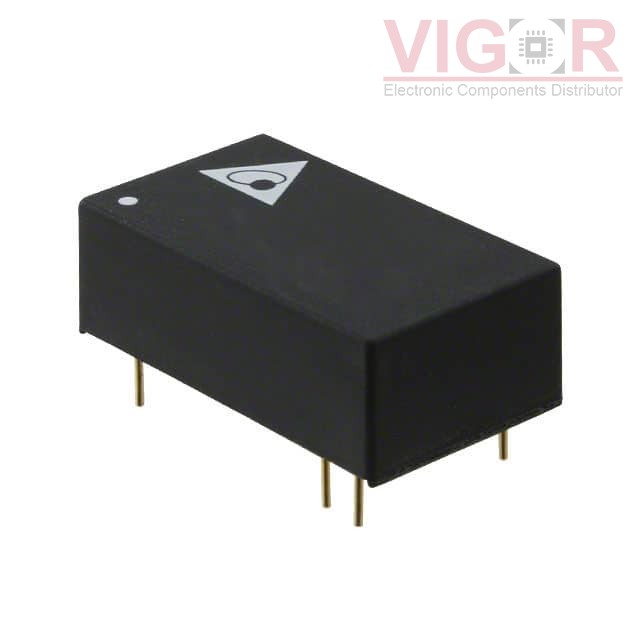

DB02D0505A

Image is for reference,
please contact us to get the real picture

Part No :: DB02D0505A

Manufacturer: Delta Electronics / Power

Description: DC DC CONVERTER +/-5V 2W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: DB02D0505A PDF

Availability: 1209 pieces

Unit Price: ~~$10.84380~~

Current price of DB02D0505A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DB02D0505A Specifications

Type	Description
Series:	DB02S/D (2W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	9V
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA, 200mA
Power (Watts):	2 W
Voltage - Isolation:	1.5 kV
Applications:	Medical
Features:	SCP, UVLO
Operating Temperature:	-40°C ~ 80°C
Efficiency:	64%
Mounting Type:	Through Hole
Package / Case:	16-DIP Module, 6 Leads
Size / Dimension:	0.94" L x 0.54" W x 0.30" H (23.9mm x 13.7mm x 7.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
