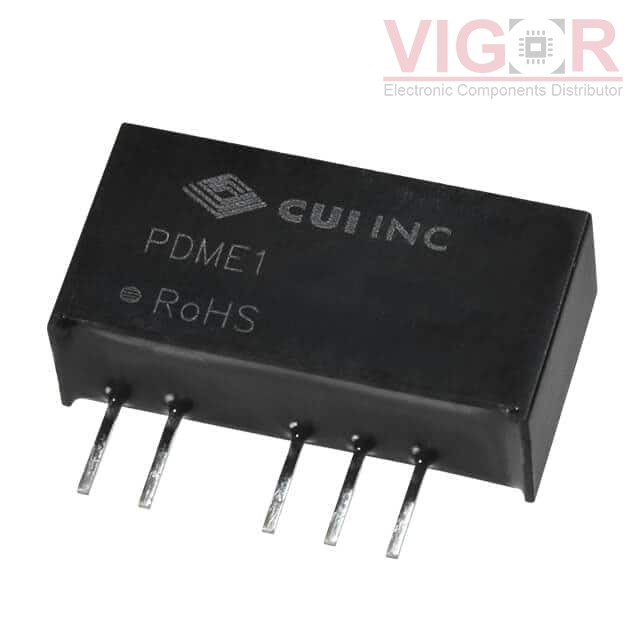

PDME1-S5-D5-S

Image is for reference,
please contact us to get the real picture

Part No :

PDME1-S5-D5-S

Manufacturer
CUI Inc.
Description
DC DC CONVERTER +/-5V 1W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
PDME1-S5-D5-S PDF
Availability
182 pieces
Unit Price
$2.24000

Current price of PDME1-S5-D5-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:PDME1-S (1W)
Package:Tube
Part Status:Active
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):4.5V
Voltage - Input (Max):5.5V
Voltage - Output 1:5V
Voltage - Output 2:-5V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):100mA, 100mA
Power (Watts):1 W
Voltage - Isolation:1.5 kV
Applications:ITE (Commercial)
Features:SCP
Operating Temperature:-40°C ~ 105°C (With Derating)
Efficiency:82%
Mounting Type:Through Hole
Package / Case:7-SIP Module, 5 Leads
Size / Dimension:0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Supplier Device Package:-
Control Features:-
Approval Agency:CB Scheme, EN, IEC, UL
Standard Number:55024; 55032 Class A; 62368-1
