R1D-1509/H

R1D-1509/H

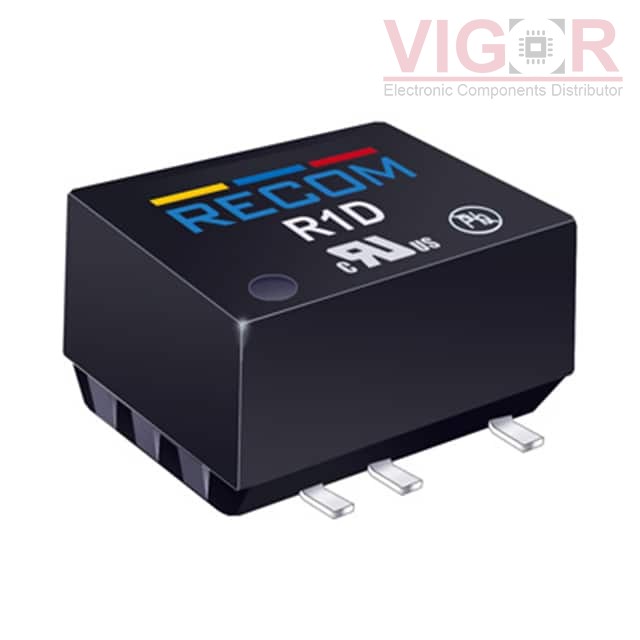

Image is for reference,
please contact us to get the real picture

Part No :

R1D-1509/H

Manufacturer
RECOM Power
Description
DC DC CONVERTER +/-9V 1W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
R1D-1509/H PDF
Availability
1634 pieces
Unit Price
$7.26606

Current price of R1D-1509/H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

R1D-1509/H Specifications
Type Description
Series:ECONOLINE R1D (1W)
Package:Tube
Part Status:Active
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):13.5V
Voltage - Input (Max):16.5V
Voltage - Output 1:9V
Voltage - Output 2:-9V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):56mA, 56mA
Power (Watts):1 W
Voltage - Isolation:3 kV
Applications:ITE (Commercial), Medical
Features:SCP
Operating Temperature:-40°C ~ 100°C
Efficiency:78%
Mounting Type:Surface Mount
Package / Case:10-SMD Module, 6 Leads
Size / Dimension:0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
