JCD0624D05

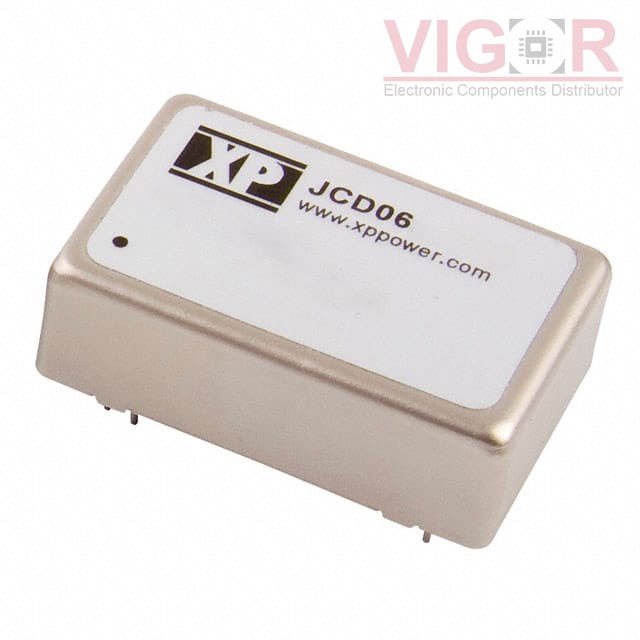

Image is for reference,
please contact us to get the real picture

Part No :

JCD0624D05

Manufacturer
XP Power
Description
DC DC CONVERTER +/-5V 6W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
JCD0624D05 PDF
Availability
1489 pieces
Unit Price
$20.21000

Current price of JCD0624D05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:JCD (6W)
Package:Tube
Part Status:Active
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):18V
Voltage - Input (Max):36V
Voltage - Output 1:5V
Voltage - Output 2:-5V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):600mA
Power (Watts):6 W
Voltage - Isolation:1.6 kV
Applications:ITE (Commercial)
Features:OCP, OVP, SCP
Operating Temperature:-40°C ~ 100°C
Efficiency:81%
Mounting Type:Through Hole
Package / Case:24-DIP Module, 8 Leads
Size / Dimension:1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:62368-1
