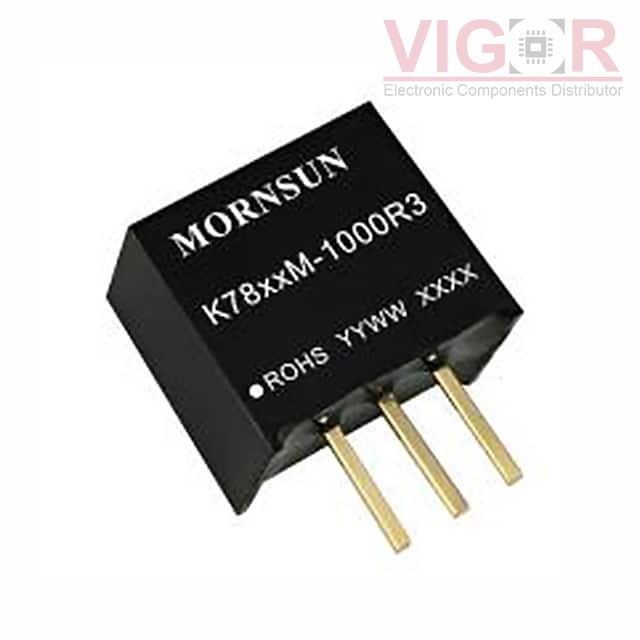

K7815M-1000R3

K7815M-1000R3

Image is for reference,
please contact us to get the real picture

Part No :

K7815M-1000R3

Manufacturer
Mornsun
Description
DC DC CONVERTER +/-15V 20W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
K7815M-1000R3 PDF
Availability
533 pieces
Unit Price
$3.09000

Current price of K7815M-1000R3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

K7815M-1000R3 Specifications
Type Description
Series:K7815M-1000R3
Package:Tube
Part Status:Active
Type:Non-Isolated PoL Module
Number of Outputs:1
Voltage - Input (Min):8V, 20V
Voltage - Input (Max):18V, 36V
Voltage - Output 1:15V, -15V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):1A, 300mA
Power (Watts):20 W
Voltage - Isolation:-
Applications:ITE (Commercial)
Features:-
Operating Temperature:-40°C ~ 85°C (With Derating)
Efficiency:88%
Mounting Type:Through Hole
Package / Case:3-SIP Module
Size / Dimension:0.46" L x 0.31" W x 0.41" H (11.6mm x 8.0mm x 10.4mm)
Supplier Device Package:-
Control Features:-
Approval Agency:CE
Standard Number:-
