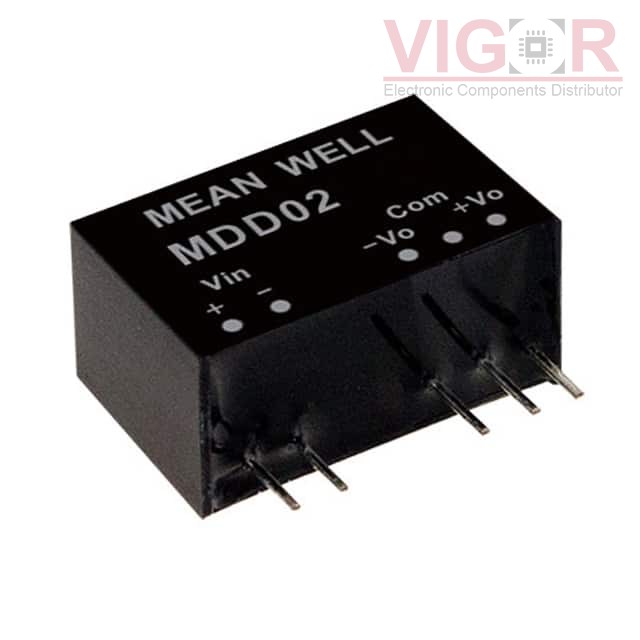

MDD02N-05

Image is for reference,
please contact us to get the real picture

Part No :: MDD02N-05

Manufacturer: MEAN WELL

Description: DC DC CONVERTER +/-5V 2W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: MDD02N-05 PDF

Availability: 1375 pieces

Unit Price: ~~$6.43000~~

Current price of MDD02N-05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MDD02N-05 Specifications

Type	Description
Series:	MDD02 (2W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	21.6V
Voltage - Input (Max):	26.4V
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA, 200mA
Power (Watts):	2 W
Voltage - Isolation:	6 kV
Applications:	Medical
Features:	SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	77%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 5 Leads
Size / Dimension:	0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
Supplier Device Package:	7-SIP
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
