EC5BU-12D05

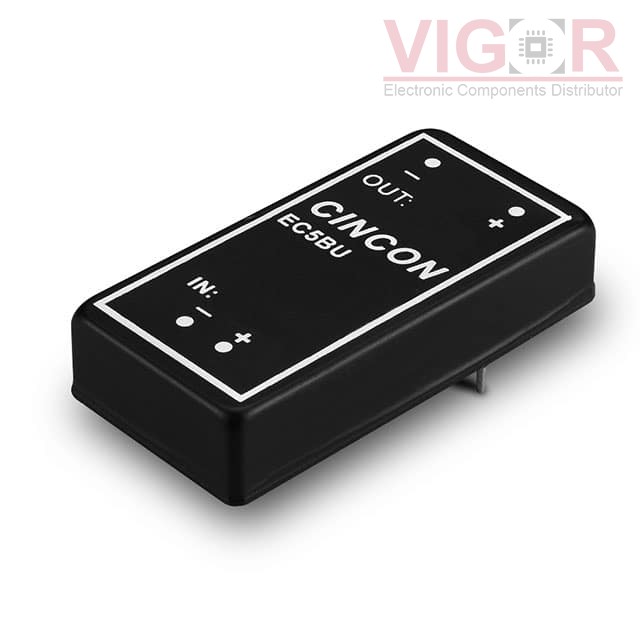

Image is for reference,
please contact us to get the real picture

Part No :: EC5BU-12D05

Manufacturer: Cincon

Description: DC DC CONVERTER +/-5V 15W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: EC5BU-12D05 PDF

Availability: 252 pieces

Unit Price: ~~$30.96083~~

Current price of EC5BU-12D05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EC5BU-12D05 Specifications

Type	Description
Series:	EC5BU (15W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	9V
Voltage - Input (Max):	18V
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.5A, 1.5A
Power (Watts):	15 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	85%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
