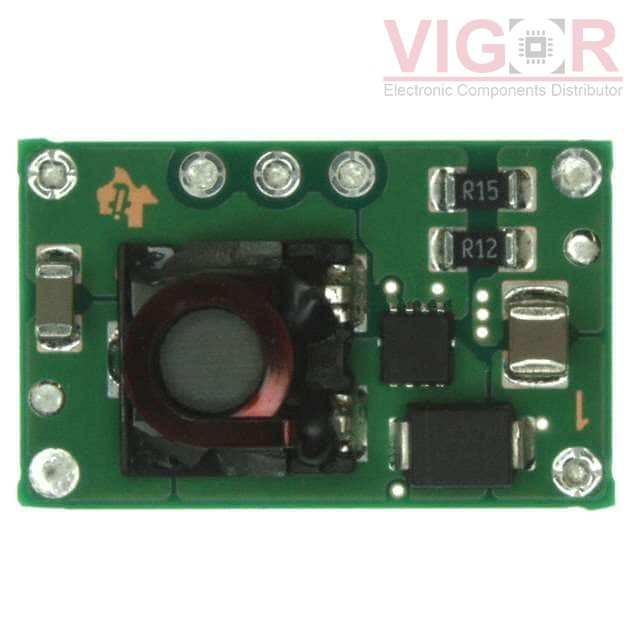

PTN78060HAH

Image is for reference,
please contact us to get the real picture

Part No :: PTN78060HAH

Manufacturer: Texas Instruments

Description: DC DC CONVERTER 11.85-22V

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Aug 21 - Aug 25 2025

DataSheet: PTN78060HAH PDF

Availability: 459 pieces

Unit Price: ~~$25.68000~~

Current price of PTN78060HAH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PTN78060HAH Specifications

Type	Description
Series:	PTN78060H
Package:	Tray
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	15V
Voltage - Input (Max):	36V
Voltage - Output 1:	11.85 ~ 22V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	96%
Mounting Type:	Through Hole
Package / Case:	7-DIP Module
Size / Dimension:	1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
