XR79120EL-F

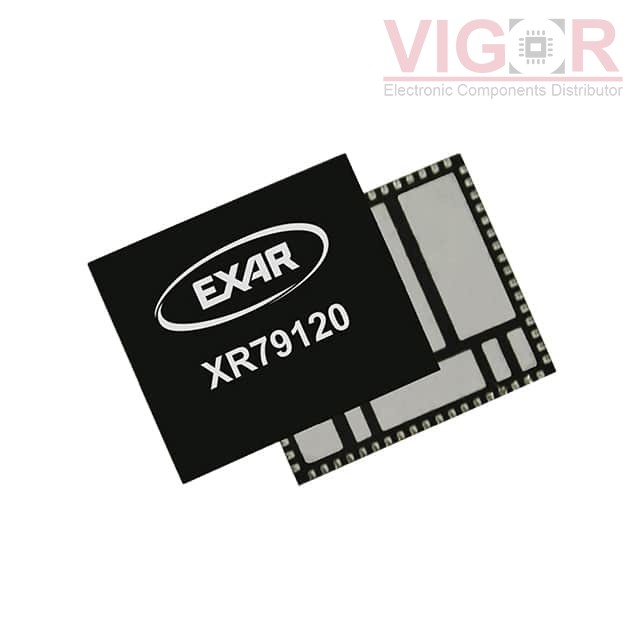

Image is for reference,
please contact us to get the real picture

Part No :: XR79120EL-F

Manufacturer: MaxLinear

Description: DC DC CONVERTER 0.6-5.5V

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 26 - Jul 30 2025

DataSheet: XR79120EL-F PDF

Availability: 1195 pieces

Unit Price: ~~$17.95524~~

Current price of XR79120EL-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XR79120EL-F Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	22V
Voltage - Output 1:	0.6 ~ 5.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	20A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, SCP, UVLO
Operating Temperature:	-40°C ~ 125°C
Efficiency:	93%
Mounting Type:	Surface Mount
Package / Case:	74-BQFN Exposed Pad, Module
Size / Dimension:	0.31" L x 0.31" W x 0.16" H (8.0mm x 8.0mm x 4.0mm)
Supplier Device Package:	74-QFN (12x14)
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
