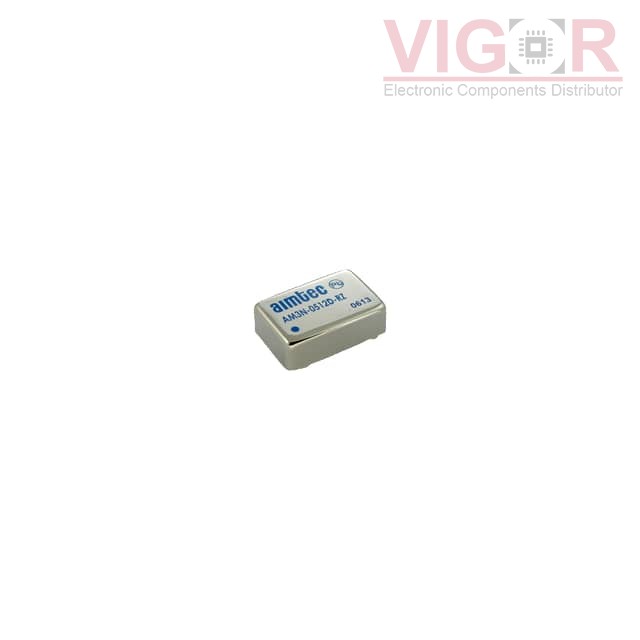

AM3N-0503D-RZ

Image is for reference,
please contact us to get the real picture

Part No :: AM3N-0503D-RZ

Manufacturer: DComponents

Description: DC DC CONVERTER 3.3V -3.3V 2.6W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: AM3N-0503D-RZ PDF

Availability: 641 pieces

Unit Price: ~~$16.31000~~

Current price of AM3N-0503D-RZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AM3N-0503D-RZ Specifications

Type	Description
Series:	AM3N-D-RZ (3W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-3.3V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	400mA, 400mA
Power (Watts):	2.6 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	68%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 12 Leads
Size / Dimension:	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Please confirm the specifications of the products when ordering.
