AM1DR-0505SZ

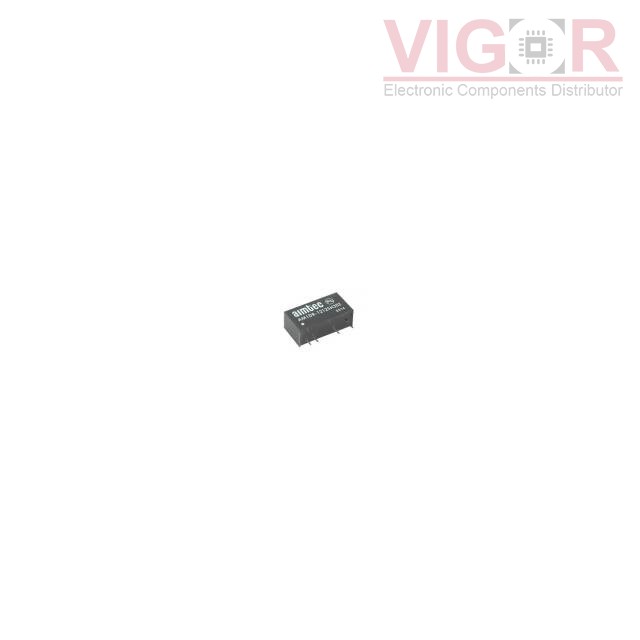

Image is for reference,
please contact us to get the real picture

Part No :: AM1DR-0505SZ

Manufacturer: DComponents

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Aug 08 - Aug 12 2025

DataSheet: AM1DR-0505SZ PDF

Availability: 756 pieces

Unit Price: ~~$8.26000~~

Current price of AM1DR-0505SZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AM1DR-0505SZ Specifications

Type	Description
Series:	AM1DR-Z (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	68%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.76" L x 0.28" W x 0.39" H (19.5mm x 7.2mm x 10.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-
