SBTN01N-15

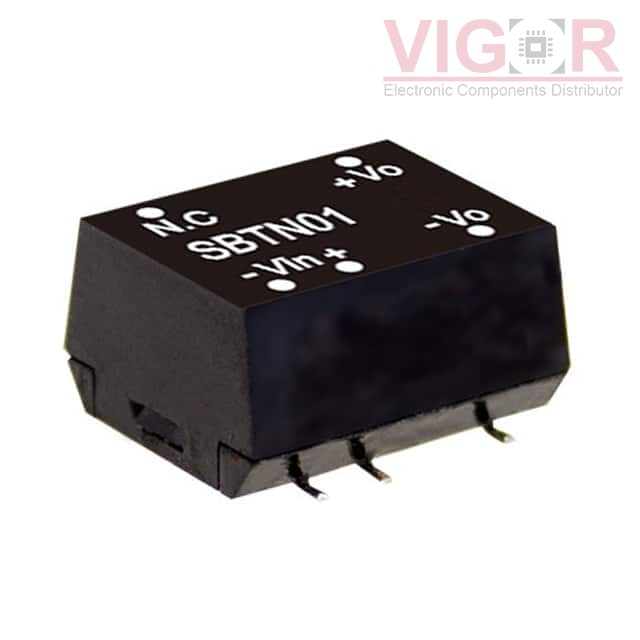

Image is for reference,
please contact us to get the real picture

Part No :: SBTN01N-15

Manufacturer: MEAN WELL

Description: DC DC CONVERTER 15V 1W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 22 - Jul 26 2025

DataSheet: SBTN01N-15 PDF

Availability: 87 pieces

Unit Price: ~~$3.69000~~

Current price of SBTN01N-15 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SBTN01N-15 Specifications

Type	Description
Series:	SBTN01 (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	21.6V
Voltage - Input (Max):	26.4V
Voltage - Output 1:	15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	67mA
Power (Watts):	1 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 90°C (With Derating)
Efficiency:	78%
Mounting Type:	Surface Mount
Package / Case:	8-SMD Module, 5 Leads
Size / Dimension:	0.51" L x 0.43" W x 0.28" H (12.9mm x 10.9mm x 7.1mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
