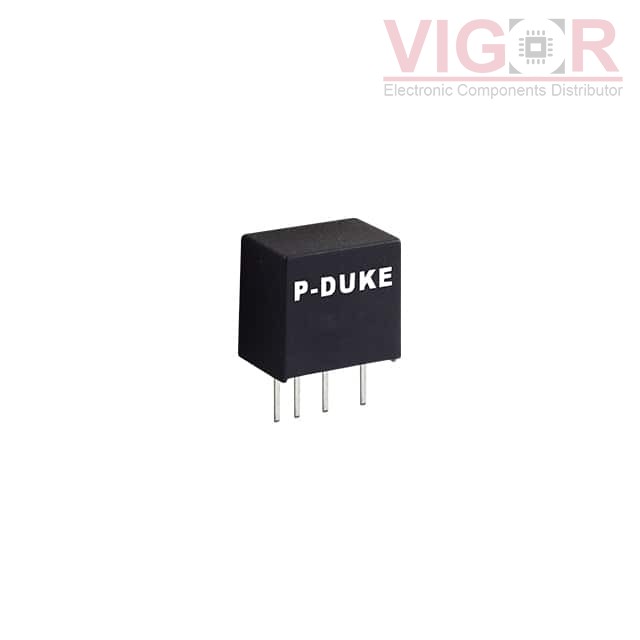

UDH01-05S05

Image is for reference,
please contact us to get the real picture

Part No :: UDH01-05S05

Manufacturer: P-Duke Technology, Inc.

Description: ISOLATED / 1W/ VOUT:5

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 22 - Jul 26 2025

DataSheet: UDH01-05S05 PDF

Availability: 1051 pieces

Unit Price: ~~$9.73000~~

Current price of UDH01-05S05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

UDH01-05S05 Specifications

Type	Description
Series:	UDH01 (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	1.6 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	79%
Mounting Type:	Through Hole
Package / Case:	5-SIP Module, 4 Leads
Size / Dimension:	0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

ZUW34812-A

DC DC CONVERTER +/-12V 24V 3.1W

HOT

VI-JW0-EZ-B1

DC DC CONVERTER 5V 25W

HOT

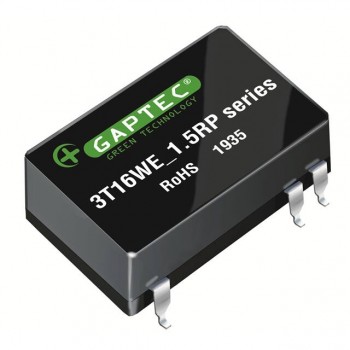

3T16WE_1203S1.5RP
