AM2DS-1209DH30-NZ

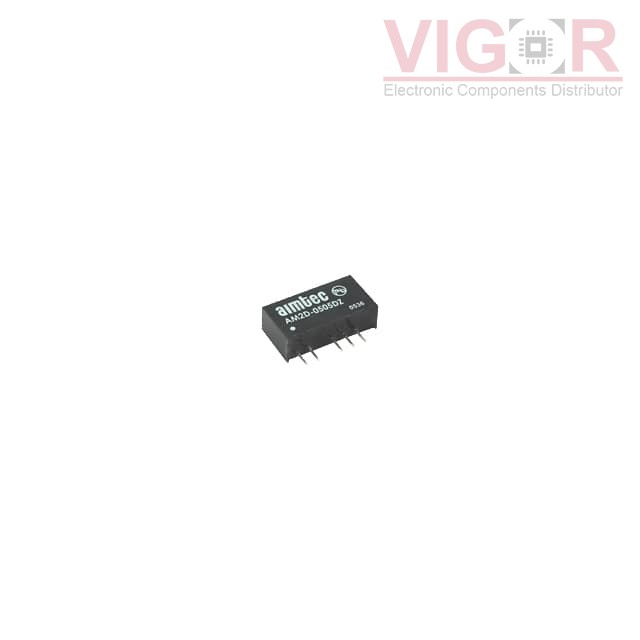

Image is for reference,
please contact us to get the real picture

Part No :: AM2DS-1209DH30-NZ

Manufacturer: DComponents

Description: DC DC CONVERTER +/-9V 2W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: AM2DS-1209DH30-NZ PDF

Availability: 1852 pieces

Unit Price: ~~$4.66000~~

Current price of AM2DS-1209DH30-NZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AM2DS-1209DH30-NZ Specifications

Type	Description
Series:	AM2DS-NZ (2W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	9V
Voltage - Output 2:	-9V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	111mA, 111mA
Power (Watts):	2 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	84%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 5 Leads
Size / Dimension:	0.77" L x 0.28" W x 0.41" H (19.6mm x 7.0mm x 10.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	cULus, cURus
Standard Number:	-
