AM1LS-2409DH30-NZTR

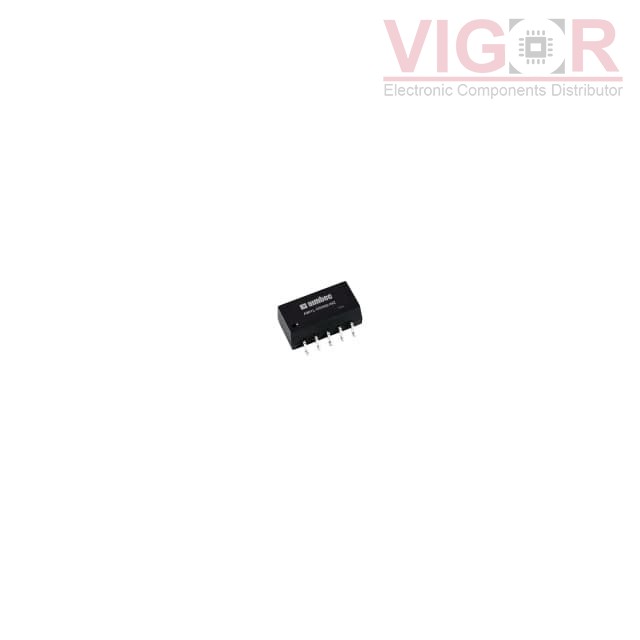

Image is for reference,
please contact us to get the real picture

Part No :

AM1LS-2409DH30-NZTR

Manufacturer
DComponents
Description
DC DC CONVERTER +/-9V 1W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
AM1LS-2409DH30-NZTR PDF
Availability
639 pieces
Unit Price
$3.38000

Current price of AM1LS-2409DH30-NZTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:AM1LS-NZ (1W)
Package:Tape & Reel (TR)
Part Status:Active
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):21.6V
Voltage - Input (Max):26.4V
Voltage - Output 1:9V
Voltage - Output 2:-9V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):56mA, 56mA
Power (Watts):1 W
Voltage - Isolation:3 kV
Applications:ITE (Commercial)
Features:-
Operating Temperature:-40°C ~ 105°C (With Derating)
Efficiency:82%
Mounting Type:Surface Mount
Package / Case:10-SMD Module, 6 Leads
Size / Dimension:0.60" L x 0.33" W x 0.29" H (15.2mm x 8.3mm x 7.3mm)
Supplier Device Package:-
Control Features:-
Approval Agency:cULus, cURus
Standard Number:-
