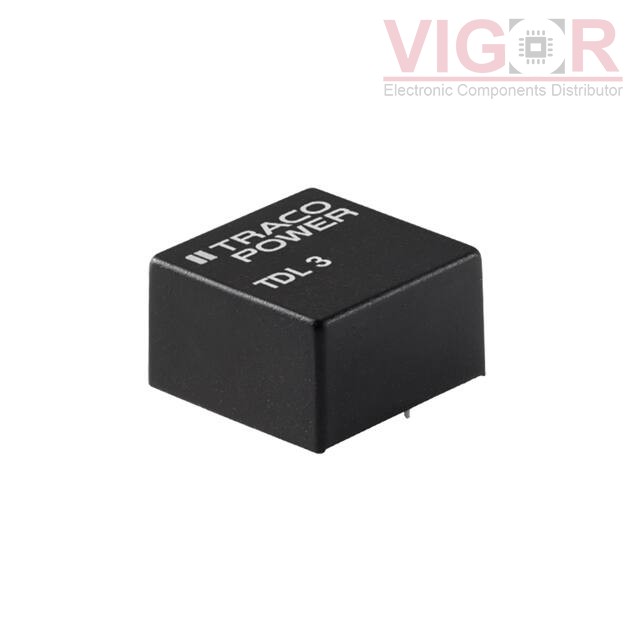

TDL 3-2422

TDL 3-2422

Image is for reference,
please contact us to get the real picture

Part No :

TDL 3-2422

Manufacturer
TRACO Power
Description
DC DC CONVERTER +/-12V 3W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
TDL 3-2422 PDF
Availability
1213 pieces
Unit Price
$19.40800

Current price of TDL 3-2422 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TDL 3-2422 Specifications
Type Description
Series:TDL 3 (3W)
Package:Tube
Part Status:Not For New Designs
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):18V
Voltage - Input (Max):36V
Voltage - Output 1:12V
Voltage - Output 2:-12V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):125mA, 125mA
Power (Watts):3 W
Voltage - Isolation:1.5 kV
Applications:ITE (Commercial)
Features:OCP, SCP
Operating Temperature:-40°C ~ 70°C
Efficiency:86%
Mounting Type:Through Hole
Package / Case:7-DIP Module, 5 Leads
Size / Dimension:0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

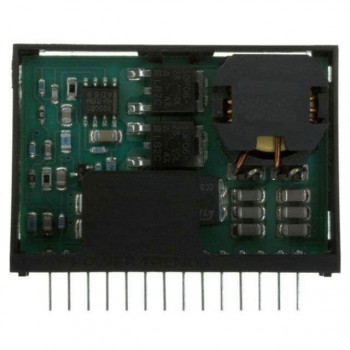

HOT PT6602P

PT6602P

SWITCHING REGLTR, VOLTAGE-MODE
HOT ZUW1R54812

ZUW1R54812

DC DC CONVERTER +/-12V

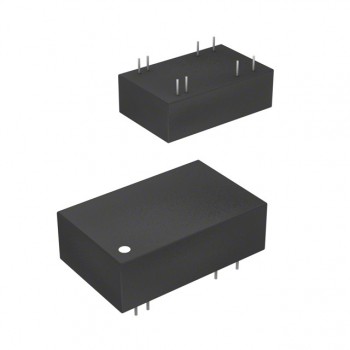

HOT REC3-2412DRW/H4/A/CTRL
