JCD0512S09

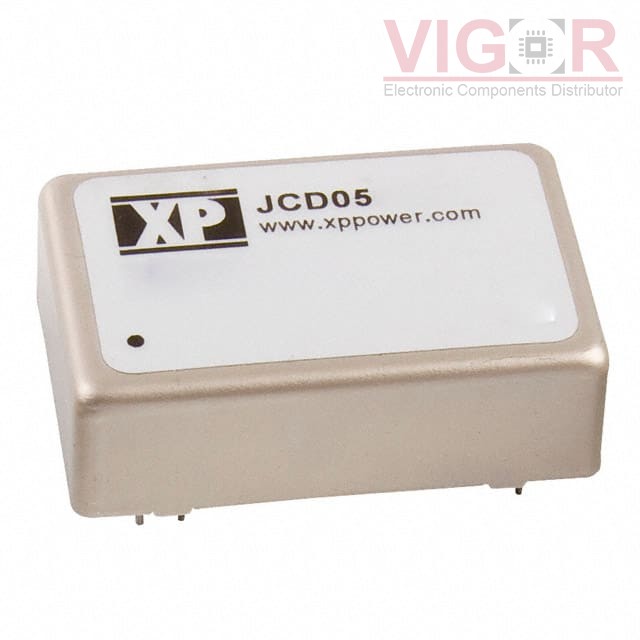

Image is for reference,
please contact us to get the real picture

Part No :: JCD0512S09

Manufacturer: XP Power

Description: DC DC CONVERTER 9V 5W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: JCD0512S09 PDF

Availability: 908 pieces

Unit Price: ~~$18.33000~~

Current price of JCD0512S09 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JCD0512S09 Specifications

Type	Description
Series:	JCD (5W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	18V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	555mA
Power (Watts):	5 W
Voltage - Isolation:	1.6 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, SCP
Operating Temperature:	-40°C ~ 100°C
Efficiency:	80%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 7 Leads
Size / Dimension:	1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	62368-1

Please confirm the specifications of the products when ordering.
