PT78NR152ST

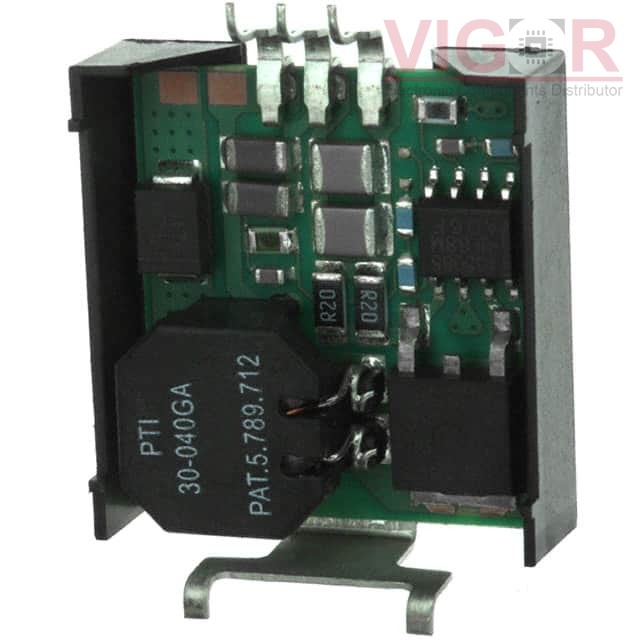

Image is for reference,
please contact us to get the real picture

Part No :: PT78NR152ST

Manufacturer: Texas Instruments

Description: DC DC CONVERTER -5.2V

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Aug 21 - Aug 25 2025

DataSheet: PT78NR152ST PDF

Availability: 447 pieces

Unit Price: ~~$0.00000~~

Current price of PT78NR152ST is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PT78NR152ST Specifications

Type	Description
Series:	PT78NR100
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	7V
Voltage - Input (Max):	25V
Voltage - Output 1:	-5.2V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	75%
Mounting Type:	Surface Mount
Package / Case:	3-SMD Module
Size / Dimension:	0.94" L x 0.90" W x 0.34" H (23.9mm x 22.9mm x 8.6mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
