PT78NR105H

PT78NR105H

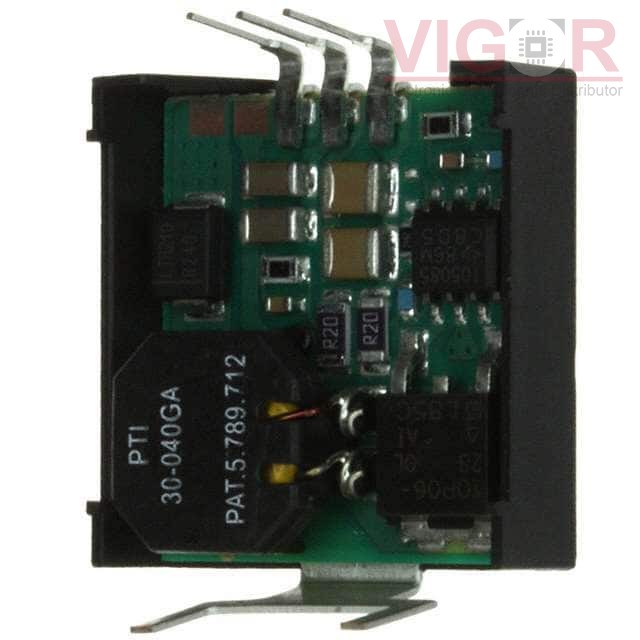

Image is for reference,
please contact us to get the real picture

Part No :

PT78NR105H

Manufacturer
Texas Instruments
Description
DC DC CONVERTER -5V
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Aug 12 - Aug 16 2025
DataSheet
PT78NR105H PDF
Availability
881 pieces
Unit Price
$0.00000

Current price of PT78NR105H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PT78NR105H Specifications
Type Description
Series:PT78NR100
Package:Tray
Part Status:Obsolete
Type:Non-Isolated PoL Module
Number of Outputs:1
Voltage - Input (Min):7V
Voltage - Input (Max):25V
Voltage - Output 1:-5V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):1A
Power (Watts):-
Voltage - Isolation:-
Applications:ITE (Commercial)
Features:OTP, SCP
Operating Temperature:-40°C ~ 85°C
Efficiency:75%
Mounting Type:Through Hole, Right Angle
Package / Case:3-SIP Module
Size / Dimension:0.94" L x 0.90" W x 0.31" H (23.9mm x 22.9mm x 7.9mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
