PT4143A

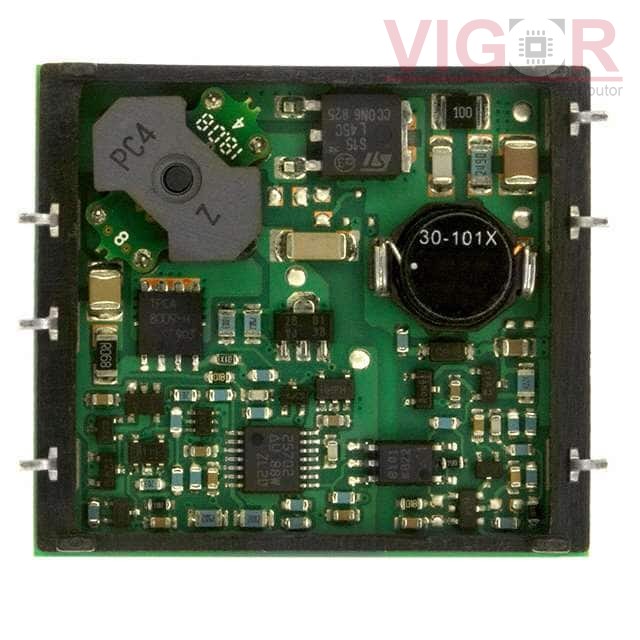

Image is for reference,
please contact us to get the real picture

Part No :: PT4143A

Manufacturer: Texas Instruments

Description: DC DC CONVERTER 12V 20W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Aug 11 - Aug 15 2025

DataSheet: PT4143A PDF

Availability: 1002 pieces

Unit Price: ~~$0.00000~~

Current price of PT4143A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PT4143A Specifications

Type	Description
Series:	PT4140 (20W)
Package:	Tray
Part Status:	Obsolete
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	40V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.6A
Power (Watts):	20 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	83%
Mounting Type:	Through Hole, Right Angle
Package / Case:	6-DIP Module
Size / Dimension:	1.73" L x 1.52" W x 0.33" H (43.9mm x 38.6mm x 8.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
