TP-7503

TP-7503

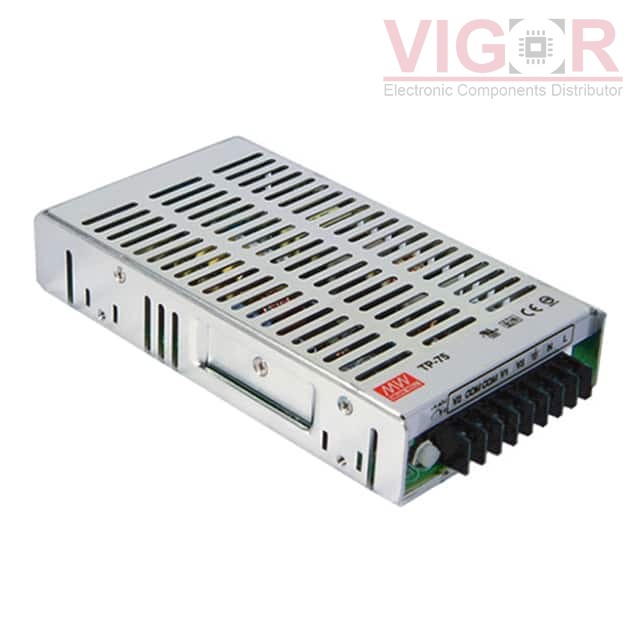

Image is for reference,
please contact us to get the real picture

Part No :

TP-7503

Manufacturer
MEAN WELL
Description
AC/DC CONVERTER 5V 3.3V 12V 75W
Catalog
AC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
TP-7503 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of TP-7503 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TP-7503 Specifications
Type Description
Series:TP-75 (75W)
Package:Box
Part Status:Obsolete
Type:Enclosed
Number of Outputs:3
Voltage - Input:90 ~ 264 VAC, 127 ~ 370 VDC
Voltage - Output 1:5V
Voltage - Output 2:3.3V
Voltage - Output 3:12V
Voltage - Output 4:-
Current - Output (Max):9A, 8A, 300mA
Power (Watts):75W
Applications:ITE (Commercial)
Voltage - Isolation:3 kV
Efficiency:70%
Operating Temperature:-10°C ~ 60°C (With Derating)
Features:Adjustable Output, PFC, Universal Input
Mounting Type:Chassis Mount
Size / Dimension:7.05" L x 3.90" W x 1.30" H (179.0mm x 99.0mm x 33.0mm)
Approval Agency:CB, CE, cURus, TUV
Standard Number:-
