JSM1F-12V-5

JSM1F-12V-5

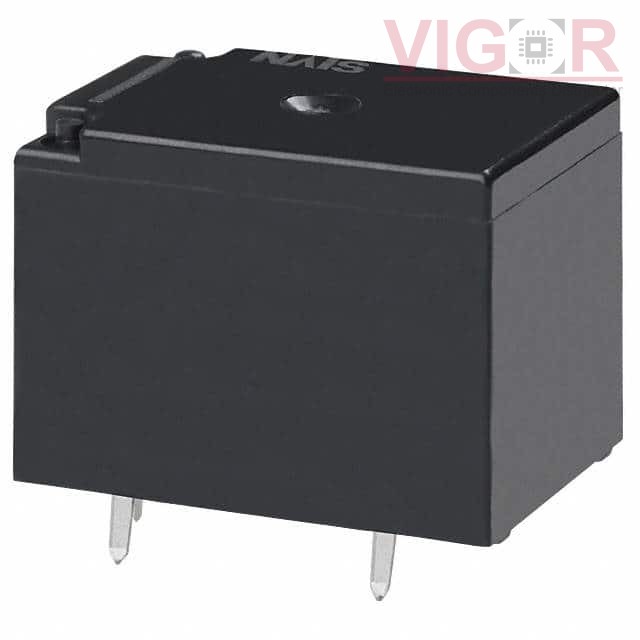

Image is for reference,
please contact us to get the real picture

Part No :

JSM1F-12V-5

Manufacturer
Panasonic
Description
JS-M RELAY 12V DC COIL HIGH CAPA
Catalog
Automotive Relays
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
JSM1F-12V-5 PDF
Availability
233 pieces
Unit Price
$6.48000

Current price of JSM1F-12V-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JSM1F-12V-5 Specifications
Type Description
Series:JS-M
Package:Bulk
Part Status:Not For New Designs
Coil Type:Non Latching
Coil Current:53.3 mA
Coil Voltage:12VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):15 A
Switching Voltage:16VDC - Max
Must Operate Voltage:6.3 VDC
Must Release Voltage:0.9 VDC
Operate Time:10 ms
Release Time:10 ms
Features:Sealed - Flux Protection
Mounting Type:Through Hole
Termination Style:PC Pin
Operating Temperature:-40°C ~ 85°C
