AHN36024

AHN36024

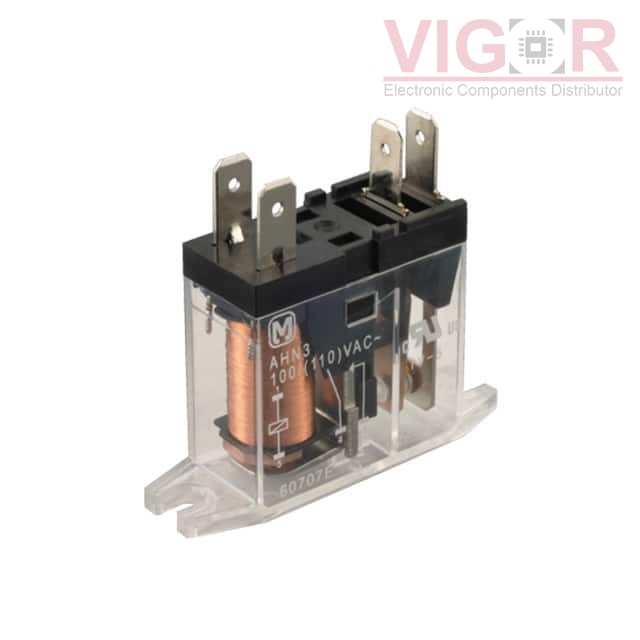

Image is for reference,
please contact us to get the real picture

Part No :

AHN36024

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 16A 24V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
AHN36024 PDF
Availability
0 pieces
Unit Price
$10.54000

Current price of AHN36024 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AHN36024 Specifications
Type Description
Series:AHN
Package:Bulk
Part Status:Obsolete
Mounting Type:Chassis Mount
Coil Voltage:24VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):16 A
Switching Voltage:250VAC, 30VDC - Max
Coil Current:22 mA
Coil Type:Non Latching
Features:-
Termination Style:Quick Connect - 0.187" (4.7mm)
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:16.8 VDC
Must Release Voltage:2.4 VDC
Operate Time:15 ms
Release Time:5 ms
Operating Temperature:-40°C ~ 70°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
