JVN1AF-100V-F

JVN1AF-100V-F

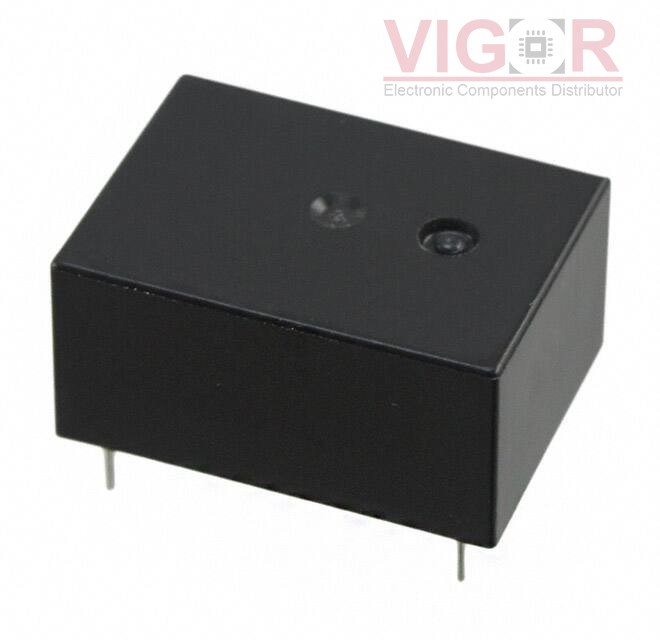

Image is for reference,
please contact us to get the real picture

Part No :

JVN1AF-100V-F

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 16A 100V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
JVN1AF-100V-F PDF
Availability
0 pieces
Unit Price
$6.93000

Current price of JVN1AF-100V-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JVN1AF-100V-F Specifications
Type Description
Series:JV-N
Package:Bulk
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:100VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):16 A
Switching Voltage:277VAC, 30VDC - Max
Coil Current:6 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Flux Protection
Coil Insulation:-
Must Operate Voltage:60 VDC
Must Release Voltage:4 VDC
Operate Time:8 ms
Release Time:5 ms
Operating Temperature:-40°C ~ 60°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
