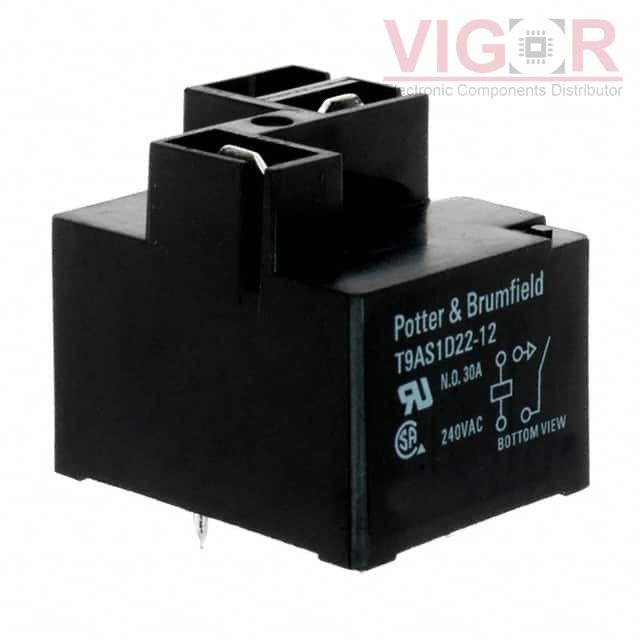

T9AS5D22-5

T9AS5D22-5

Image is for reference,
please contact us to get the real picture

Part No :

T9AS5D22-5

Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
RELAY GEN PURPOSE SPDT 20A 5V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 23 - Jul 27 2025
DataSheet
T9AS5D22-5 PDF
Availability
3027 pieces
Unit Price
$5.97000

Current price of T9AS5D22-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

T9AS5D22-5 Specifications
Type Description
Series:T9A
Package:Bulk
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:5VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):20 A
Switching Voltage:277VAC - Max
Coil Current:200 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:Sealed - Fully
Coil Insulation:Class F
Must Operate Voltage:3.75 VDC
Must Release Voltage:0.5 VDC
Operate Time:15 ms
Release Time:15 ms
Operating Temperature:-55°C ~ 85°C
Contact Material:Silver Cadmium Oxide (AgCdO)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT AHN22112N

AHN22112N

RELAY GEN PURPOSE DPDT 5A 12V
HOT KUHP-11A11-120

KUHP-11A11-120

RELAY GEN PURPOSE DPDT 20A 120V

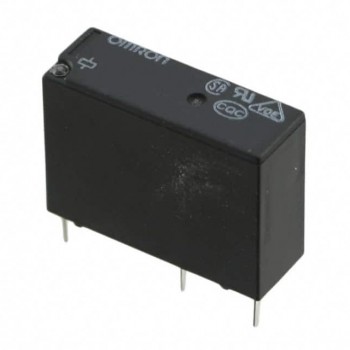

HOT G5NB1A4EDC24NA
