ALF1P24

ALF1P24

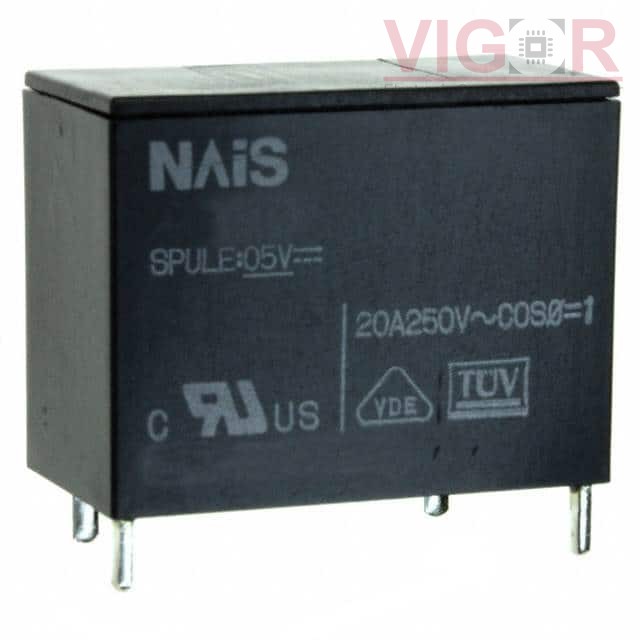

Image is for reference,
please contact us to get the real picture

Part No :

ALF1P24

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 20A 24V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Aug 09 - Aug 13 2025
DataSheet
ALF1P24 PDF
Availability
2552 pieces
Unit Price
$4.31000

Current price of ALF1P24 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ALF1P24 Specifications
Type Description
Series:ALF
Package:Box
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:24VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):20 A
Switching Voltage:250VAC - Max
Coil Current:37.5 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:16.8 VDC
Must Release Voltage:2.4 VDC
Operate Time:20 ms
Release Time:15 ms
Operating Temperature:-40°C ~ 60°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
