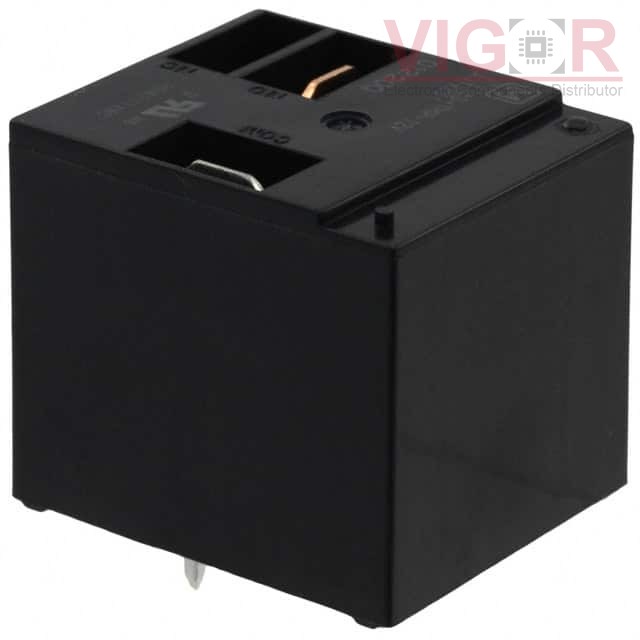

JTV1S-TMP-5V

JTV1S-TMP-5V

Image is for reference,
please contact us to get the real picture

Part No :

JTV1S-TMP-5V

Manufacturer
Panasonic
Description
JTV RELAY 1 FORM C 5V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
May 15 - May 19 2024
DataSheet
JTV1S-TMP-5V PDF
Availability
0 pieces
Unit Price
$3.66700

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of JTV1S-TMP-5V is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

JTV1S-TMP-5V Specifications
Type Description
Series:JT-V
Package:Box
Part Status:Not For New Designs
Mounting Type:Through Hole
Coil Voltage:5VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):20 A
Switching Voltage:277VAC - Max
Coil Current:-
Coil Type:Non Latching
Features:-
Termination Style:PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:Sealed - Fully
Coil Insulation:Class F
Must Operate Voltage:3.75 VDC
Must Release Voltage:0.5 VDC
Operate Time:15 ms
Release Time:10 ms
Operating Temperature:-55°C ~ 85°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
