AHN22124N

AHN22124N

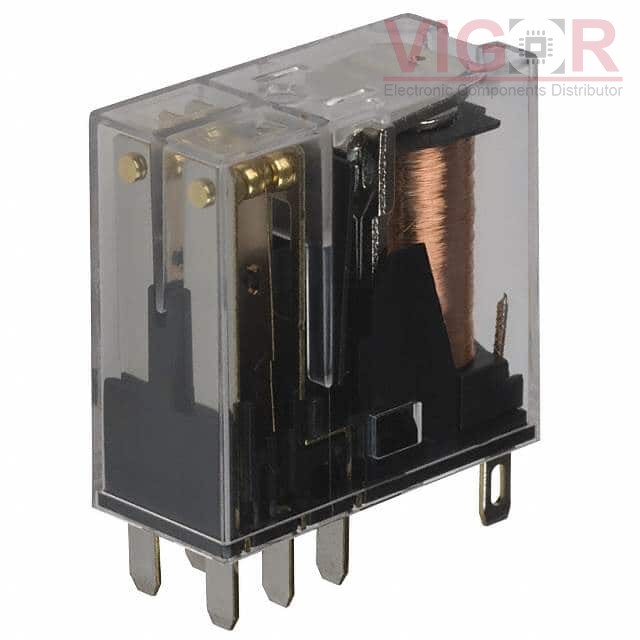

Image is for reference,
please contact us to get the real picture

Part No :

AHN22124N

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE DPDT 5A 24V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
AHN22124N PDF
Availability
0 pieces
Unit Price
$7.27000

Current price of AHN22124N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AHN22124N Specifications
Type Description
Series:AHN
Package:Box
Part Status:Obsolete
Mounting Type:Socketable
Coil Voltage:24VDC
Contact Form:DPDT (2 Form C)
Contact Rating (Current):5 A
Switching Voltage:250VAC, 30VDC - Max
Coil Current:22 mA
Coil Type:Non Latching
Features:Lighted Indicator
Termination Style:Plug In
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:16.8 VDC
Must Release Voltage:2.4 VDC
Operate Time:15 ms
Release Time:5 ms
Operating Temperature:-40°C ~ 70°C
Contact Material:Silver Nickel (AgNi)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT G6B1114PFDUSP6BDC24

G6B1114PFDUSP6BDC24

RELAY GEN PURPOSE SPST 5A 24V
HOT 2618230000

2618230000

RELAY MODULE, ACTUATOR VERSION,

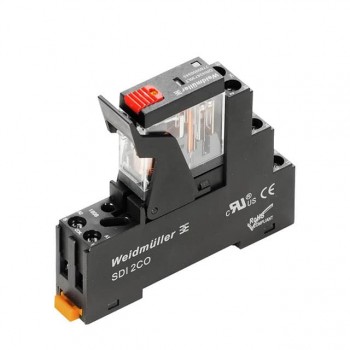

HOT 2476790000
