JTN1AG-TMP-F-DC12V

JTN1AG-TMP-F-DC12V

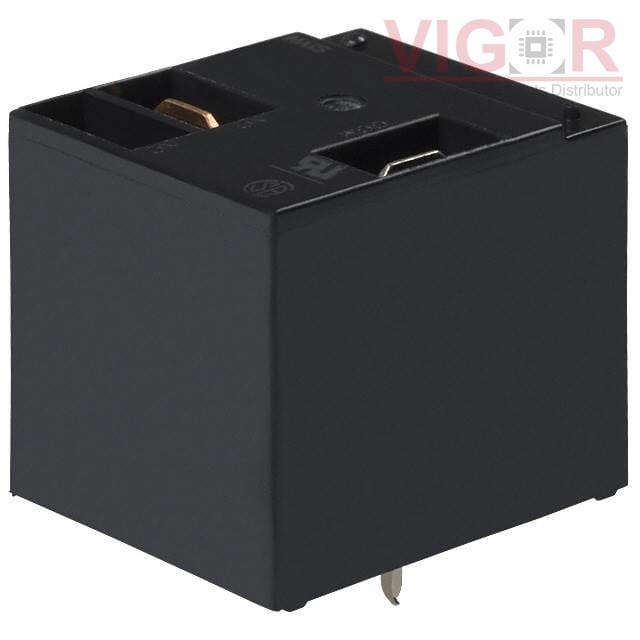

Image is for reference,
please contact us to get the real picture

Part No :

JTN1AG-TMP-F-DC12V

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 30A 12V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
JTN1AG-TMP-F-DC12V PDF
Availability
0 pieces
Unit Price
$3.36300

Current price of JTN1AG-TMP-F-DC12V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JTN1AG-TMP-F-DC12V Specifications
Type Description
Series:JT-N
Package:Bulk
Part Status:Not For New Designs
Mounting Type:Through Hole
Coil Voltage:12VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):30 A
Switching Voltage:277VAC - Max
Coil Current:66.7 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:-
Coil Insulation:Class F
Must Operate Voltage:9 VDC
Must Release Voltage:1.2 VDC
Operate Time:20 ms
Release Time:10 ms
Operating Temperature:-55°C ~ 85°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
