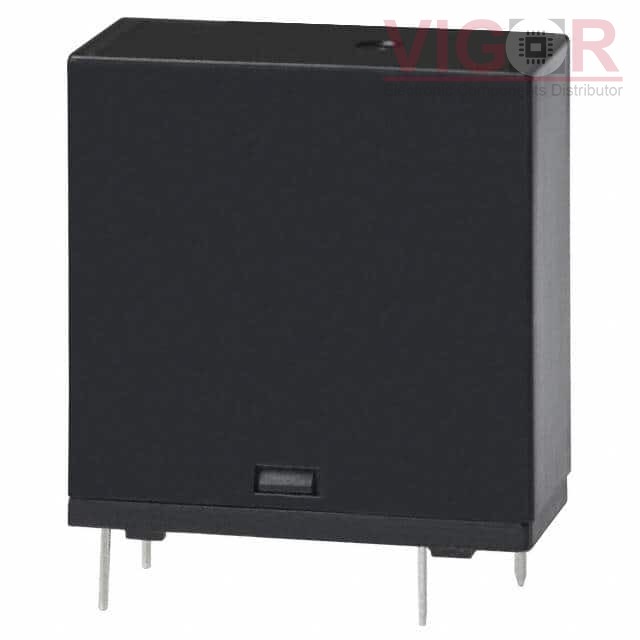

LKP1AF-12V

Image is for reference,
please contact us to get the real picture

Part No :: LKP1AF-12V

Manufacturer: Panasonic

Description: RELAY GEN PURPOSE SPST 10A 12V

Catalog: Power Relays, Over 2 Amps

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: LKP1AF-12V PDF

Availability: 7614 pieces

Unit Price: ~~$2.08000~~

Current price of LKP1AF-12V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LKP1AF-12V Specifications

Type	Description
Series:	LK-P
Package:	Bulk
Part Status:	Not For New Designs
Mounting Type:	Through Hole
Coil Voltage:	12VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	10 A
Switching Voltage:	277VAC, 30VDC - Max
Coil Current:	44.2 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Flux Protection
Coil Insulation:	-
Must Operate Voltage:	8.4 VDC
Must Release Voltage:	1.2 VDC
Operate Time:	15 ms
Release Time:	5 ms
Operating Temperature:	-40°C ~ 70°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
