JTV1G-TMP-15V

JTV1G-TMP-15V

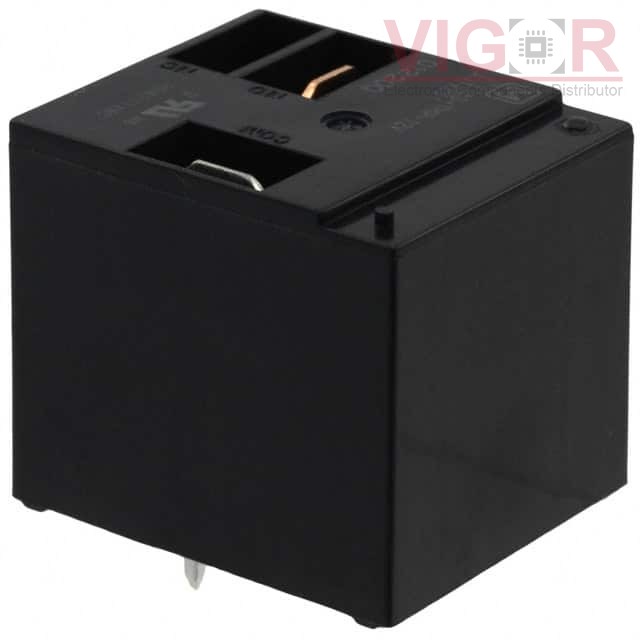

Image is for reference,
please contact us to get the real picture

Part No :

JTV1G-TMP-15V

Manufacturer
Panasonic
Description
JTV RELAY 1 FORM C 15V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
JTV1G-TMP-15V PDF
Availability
0 pieces
Unit Price
$3.66700

Current price of JTV1G-TMP-15V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JTV1G-TMP-15V Specifications
Type Description
Series:JT-V
Package:Box
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:15VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):20 A
Switching Voltage:277VAC - Max
Coil Current:-
Coil Type:Non Latching
Features:-
Termination Style:PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:-
Coil Insulation:Class F
Must Operate Voltage:11.25 VDC
Must Release Voltage:1.5 VDC
Operate Time:15 ms
Release Time:10 ms
Operating Temperature:-55°C ~ 85°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
