AZ2800-2A-120AE

AZ2800-2A-120AE

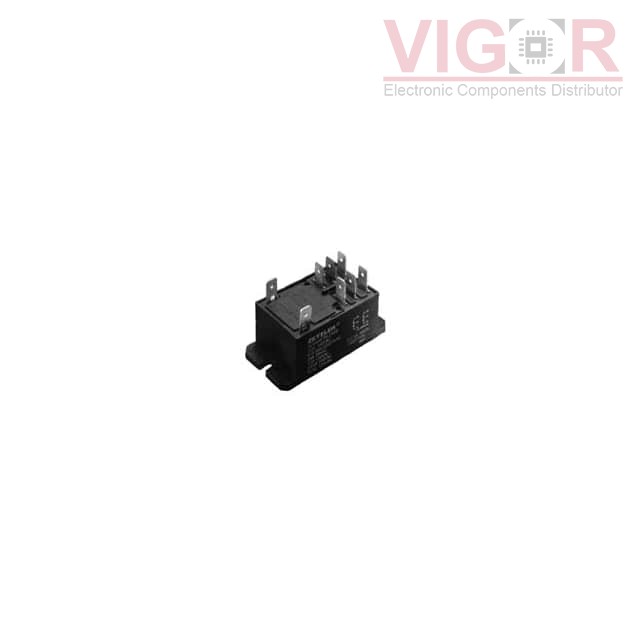

Image is for reference,
please contact us to get the real picture

Part No :

AZ2800-2A-120AE

Manufacturer
American Zettler
Description
40A MINIATURE POWER RELAY
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 23 - Jul 27 2025
DataSheet
AZ2800-2A-120AE PDF
Availability
15 pieces
Unit Price
$7.58000

Current price of AZ2800-2A-120AE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AZ2800-2A-120AE Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Mounting Type:Chassis Mount
Coil Voltage:120VAC
Contact Form:DPST-NO (2 Form A)
Contact Rating (Current):40 A
Switching Voltage:600VAC, 30VDC - Max
Coil Current:33.3 mA
Coil Type:Non Latching
Features:-
Termination Style:Quick Connect - 0.187"/0.250"
Seal Rating:Sealed - Fully
Coil Insulation:Class F
Must Operate Voltage:96 VAC
Must Release Voltage:24 VAC
Operate Time:25 ms
Release Time:25 ms
Operating Temperature:-40°C ~ 65°C
Contact Material:Silver Cadmium Oxide (AgCdO)
Relay Type:EV Charging, Solar
