ALF1P09

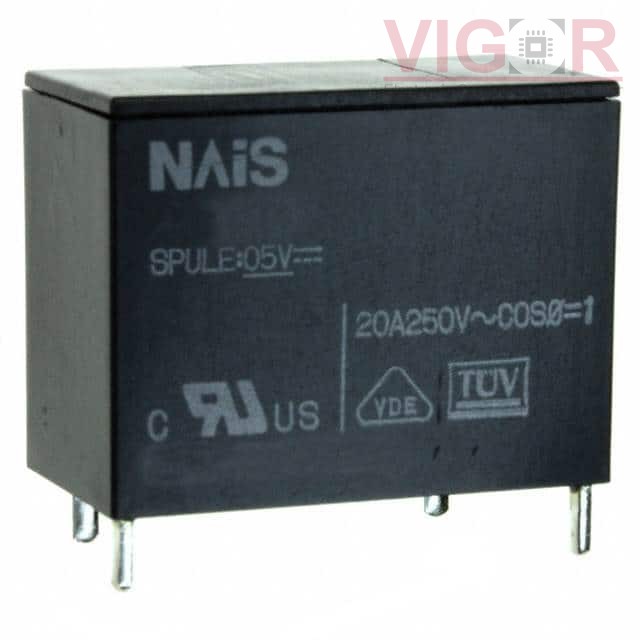

Image is for reference,
please contact us to get the real picture

Part No :: ALF1P09

Manufacturer: Panasonic

Description: RELAY GEN PURPOSE SPST 20A 9V

Catalog: Power Relays, Over 2 Amps

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: ALF1P09 PDF

Availability: 0 pieces

Unit Price: ~~$2.96400~~

Current price of ALF1P09 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ALF1P09 Specifications

Type	Description
Series:	ALF
Package:	Tube
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	9VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	20 A
Switching Voltage:	250VAC - Max
Coil Current:	100 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	6.3 VDC
Must Release Voltage:	0.9 VDC
Operate Time:	20 ms
Release Time:	15 ms
Operating Temperature:	-40°C ~ 60°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
