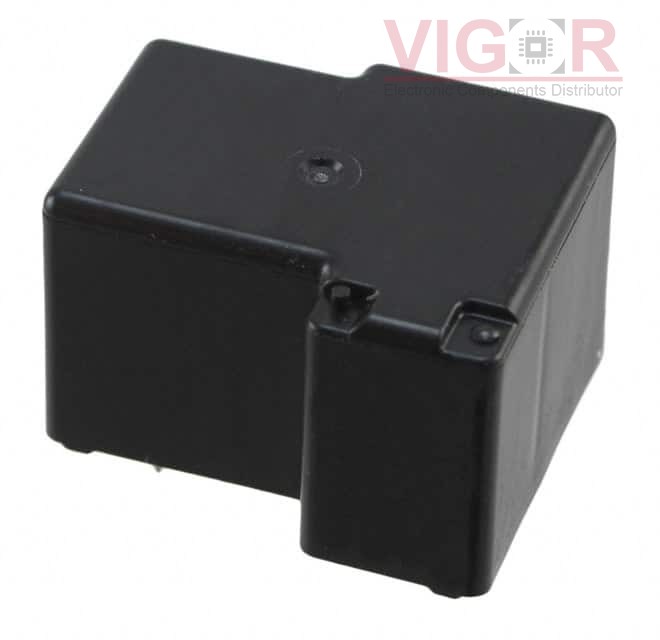

JTV1AS-PA-15V

Image is for reference,
please contact us to get the real picture

Part No :: JTV1AS-PA-15V

Manufacturer: Panasonic

Description: JTV RELAY 1 FORM A 15V

Catalog: Power Relays, Over 2 Amps

Shipped from: HK warehouse

Expected Shipping Date: Jul 30 - Aug 03 2025

DataSheet: JTV1AS-PA-15V PDF

Availability: 0 pieces

Unit Price: ~~$3.21100~~

Current price of JTV1AS-PA-15V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JTV1AS-PA-15V Specifications

Type	Description
Series:	JT-V
Package:	Box
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	15VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	30 A
Switching Voltage:	277VAC - Max
Coil Current:	-
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Fully
Coil Insulation:	Class F
Must Operate Voltage:	11.25 VDC
Must Release Voltage:	1.5 VDC
Operate Time:	15 ms
Release Time:	10 ms
Operating Temperature:	-55°C ~ 85°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
