AHN22306N

AHN22306N

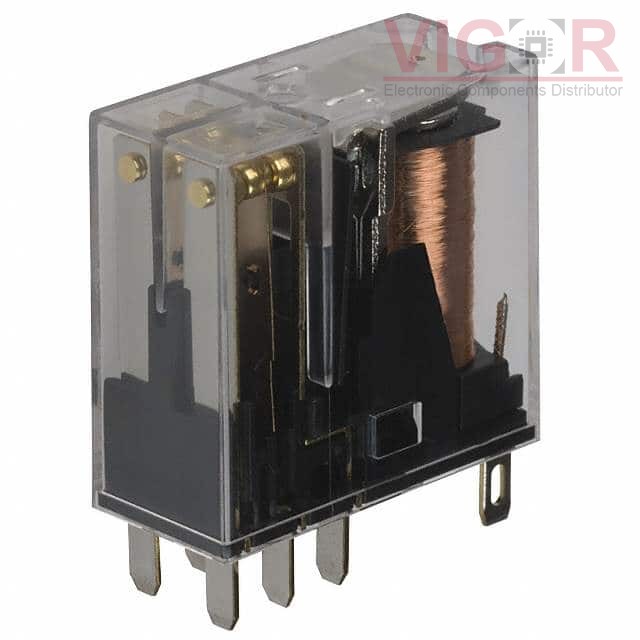

Image is for reference,
please contact us to get the real picture

Part No :

AHN22306N

Manufacturer
Panasonic
Description
RELAY GENERAL PURPOSE DPDT 5A 6V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
AHN22306N PDF
Availability
50 pieces
Unit Price
$11.11000

Current price of AHN22306N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AHN22306N Specifications
Type Description
Series:AHN
Package:Box
Part Status:Obsolete
Mounting Type:Socketable
Coil Voltage:6VDC
Contact Form:DPDT (2 Form C)
Contact Rating (Current):5 A
Switching Voltage:250VAC, 30VDC - Max
Coil Current:88.2 mA
Coil Type:Non Latching
Features:Diode, Lighted Indicator
Termination Style:Plug In
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:4.2 VDC
Must Release Voltage:0.6 VDC
Operate Time:15 ms
Release Time:20 ms
Operating Temperature:-40°C ~ 70°C
Contact Material:Silver Nickel (AgNi)
Relay Type:General Purpose
